Amiga Serial Midi Adapter v1.2
A simple MIDI interface for Amiga computers.
- Compatible with most Amiga Midi softwares.
- It simply convert serial RS-232 RX and TX signals to MIDI TTL standard.
- MIDI IN is opto-isolated to prevent ground loops and induction noise.
- Self powered via serial port.
- Convenient thru connector to connect other instruments to MIDI IN in daisy-chain.
- Tested on Bar and Pipes professional and OCTA-MED. (Let us know yours!)
v1.0 Initial Release
v1.1 Corrected LED polarity
v1.2 Corrected DB-25 PCB Footprint

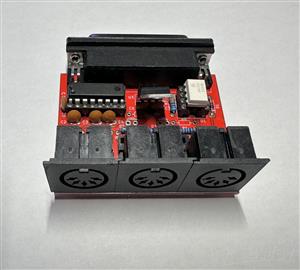

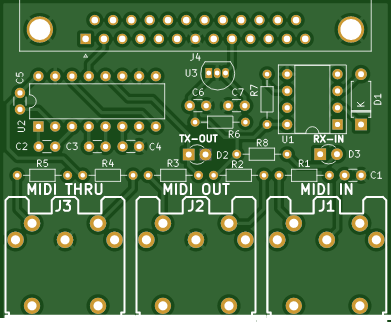

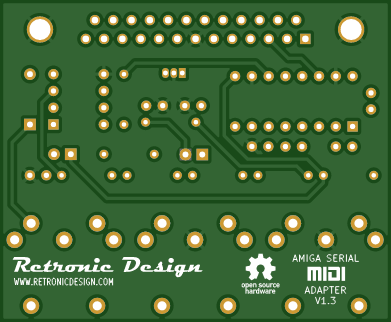

Schematic and Layout
Schematics and documentation on GitHub
https://github.com/retronicdesign/amigamidi
CAD-Custom parts and enclosures
Retronic Design other linked projects
http://www.retronicdesign.com/en/
