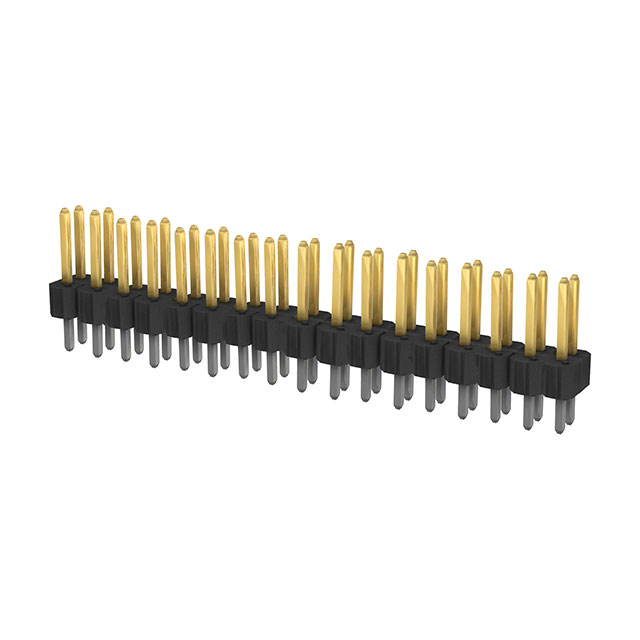

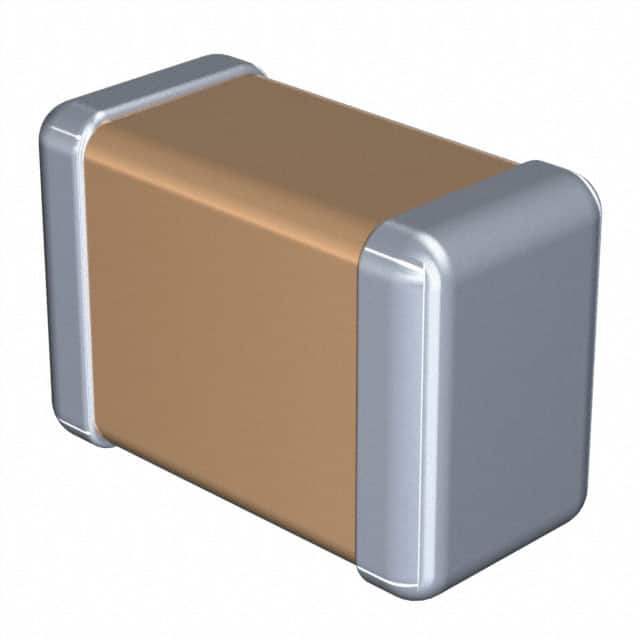

Components
Tools, APP Software Used etc.
|
KiCADKicad
|
|
|
OrCad Cadance |
|
|
|
WintyponEynard Pascal
|
Description
Amiga External Floppy Adapter v1.3
This board allow to connect all type of floppy drives to the Amiga external D-Sub 23 floppy connector;
- Original Amiga "Shugart" drive
- Gotek floppy drive emulator
- IBM-PC floppy drive (720K and 1.44M)
It can operate as DF1, DF2 or DF3, depending on the J4 jumper position. Two mode of operation are possible;
- Native "Shugart" mode can be selected with J1, J2 and J3 jumper between pin 1 and 2.
- IBM-PC mode can be selected with J1, J2 and J3 jumper between pin 2 and 3.
Onboard logic makes all drive to be seen as 880K standard Amiga floppy drives.
Schematic and Layout
https://github.com/retronicdesign/AmigaExternalFloppyAdapter
