1N4007 |
x 1 | |
|
|
L7805 CV |
x 1 | |
|
|
LM317 |
x 1 | |
|
|
100nF Ceramic Capacitor |
x 5 | |
|
|
22pF Ceramic Capacitor |
x 2 | |
|
|
100uF Capacitor |
x 3 | |
|
|
220 R |
x 2 | |
|
|
10K R |
x 1 | |
|
|
390 R |
x 1 | |
|
|
240 R |
x 1 | |
|
|
Button 6x6x8.5 mm |
x 1 | |
|
|
5 mm Led |
x 2 | |
|
|
16Mhz Crystal |
x 1 | |
|
|
ATMEGA 1284P-PU |
x 1 | |
|
|
40 dip Socket |
x 1 | |
|
|
Header Male 1x5 2.54mm |
x 1 | |
|
|
Header Male 2x3 2.54mm |
x 1 | |
|
|
Header Female 1x14 2.54mm |
x 1 | |
|
|
Header Female 1x24 2.54mm |
x 1 | |
|
|
Header Female 1x8 2.54mm |
x 1 |

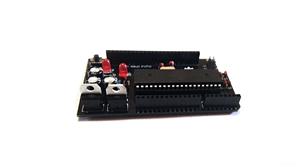

CROSSROAD LAB MEGA 1284P REV. 1.5
- UPDATE-
This update fixed some pcb issues and made it easier to upload sketches through the serial port.
GENERAL INFORMATION
MEGA 1284P is an open-source microcontroller based on the ATmega1284P. It features 24 digital input/output pins (of which 6 can be PWM outputs), 8 analog input pins, a 16 MHz ceramic resonator, an ICSP pin header, a reset button, and an LED is connected to pin 13. To power the microcontroller you can use the 5 volts of the serial or from 7 volts to 35 volts from the Vin pin (use one of the two methods, not both together).
CORE SPECIFICATION
PINOUT

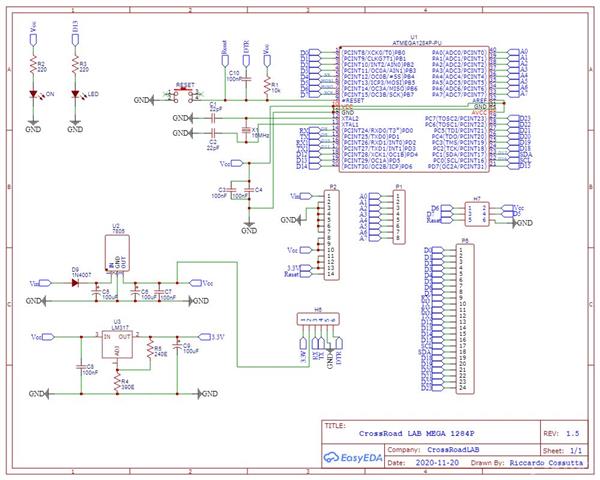

ELECTRICAL DIAGRAM
LIBRARIES INSTALLATION
For download and installing libraries visit:
https://github.com/MCUdude/MightyCore#manual-installation
HOW TO UPLOAD SKETCHES USING SERIAL PORT (UART)
First of all you need a USB TTL FTDI (like this https://t.ly/cMAf or this https://t.ly/RZF8) that will allow the sketch to be written to the microcontroller. First, however, preliminary operation must be carried out:
- Burning the bootloader (visit this for more information: https://www.arduino.cc/en/Tutorial/BuiltInExamples/ArduinoToBreadboard)
Connection between FTDI and MEGA 1284P:
FTDI to MEGA 1284P
Vcc <--------> 5v
Gnd <--------> Gnd
Tx <--------> Rx
Rx <--------> Tx
RTS/DTR <--------> DTR
CROSSROAD LAB MEGA 1284P REV. 1.5
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
