Commodore AMIGA 1200 3000 4000 Dual Kickstart 27C800 EPROM DIL

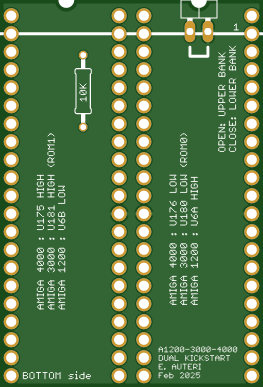

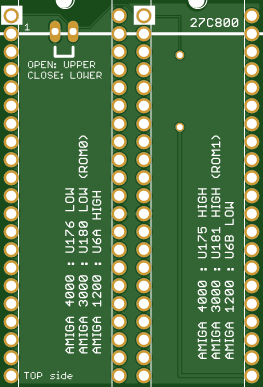

It uses two 27C800 EPROMs (100~120ns). You need to select the upper and lower banks using a shunt.
BOM List: https://www.digikey.com/en/mylists/list/370N0F465X
board thickness 1.0mm
it fits the original motherboard sockets
Feb 02,2025
191 views
end-flag
Commodore AMIGA 1200 3000 4000 Dual Kickstart 27C800 EPROM DIL
A simple dual kickstart selector board for 32bit (Upper bank 512KB + 512KB, Lower bank 512KB + 512KB) Commodore Amiga 1200, 3000 and 4000
