Inverse RIAA Network
This Inverse RIAA Network lets you use your normal signal generator to test phono inputs of an amplifier. Works for MM and MC levels.
Schematic and Layout
Inverse RIAA Network Schematic
Schematic_Inverse-RIAA_2024-04-24.pdf
Apr 24,2024
691 views
end-flag
Inverse RIAA Network

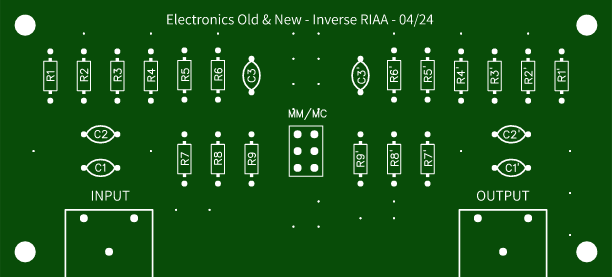

2 Layers PCB 41.9 x 92.7 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
This Inverse RIAA Network lets you use your normal signal generator to test phono inputs of an amplifier. Works for MM and MC levels.
691
1
0
Published: Apr 24,2024
Download Gerber file 26
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
