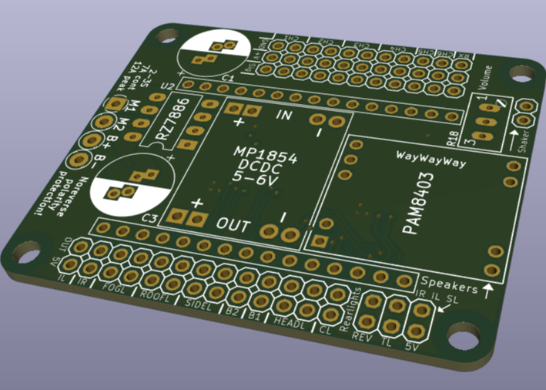

RC Light & Sound controller with integrated ESC based on ESP32
This is a remix of TheDIYGuy999's ESP32 Light & Sound Controller: https://github.com/TheDIYGuy999/Rc_Engine_Sound_ESP32.
The optional ESC based on RZ7886 is now built in.
I changed the passive size to 0603, bulk caps are now THT (it's what I have access to).
Aug 23,2023
685 views
RC Light & Sound controller with integrated ESC based on ESP32
2 Layers PCB 46 x 56 mm FR-4, 1.6 mm, 1, HASL lead free, Green Solder Mask, White silkscreen
This is a remix of TheDIYGuy999's ESP32 Light & Sound Controller: https://github.com/TheDIYGuy999/Rc_Engine_Sound_ESP32.
ESC built-in!
685
0
0
Published: Aug 23,2023
Download Gerber file 8
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial-ShareAlike (CC BY-NC-SA)
License.
