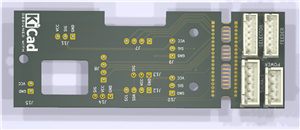

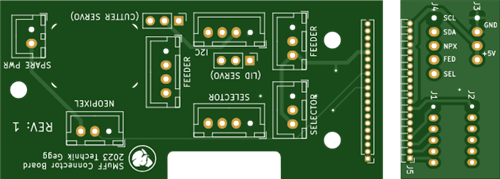

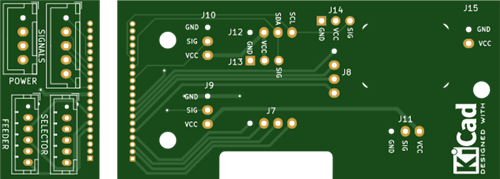

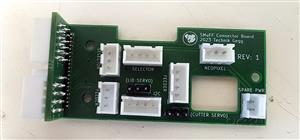

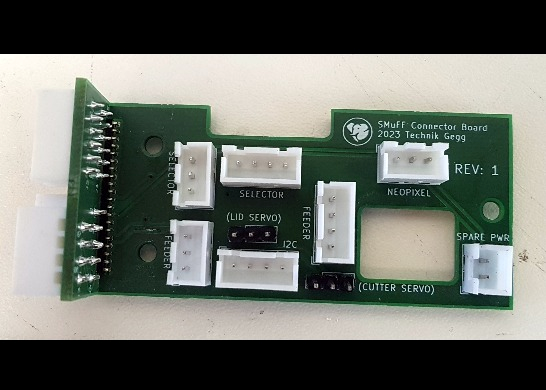

SMuFF-Connector PCB
This PCB is an add-on for the SMuFF project.
Learn more about this project in general here on my website.
This tool-board simplifies the the connection between the SMuFF and the controller box by providing dedicated connector and thus make the hole project a bit more serviceable.
