Components
|
|
MX29F1610 |
x 1 | |
|
|
PIC12F629-I/SNMicrochip
|
x 1 | |
|
|
22 UF CAPACITOR SMD 1206 |
x 1 | |
|
|
100NF CAPACITOR SMD 1206 |
x 2 | |
|
|
10K RESISTOR SMD 1206 |
x 1 |
Description

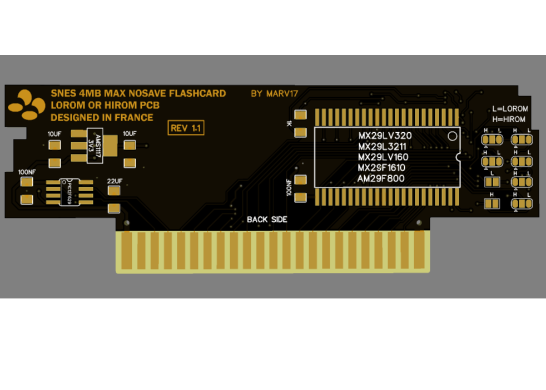

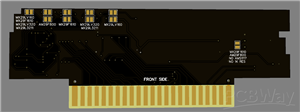

SNES 2mb flashcard Lorom/Hirom nosave pcb
An SNES Flashcard Lorom/hirom nosave pcb
2mo maximal capacity
very minimal amount of parts needed , and the flash used is a 5v flash , you can program the flashcard with sanni card reader
need bridge pads for lorom or hirom depend of the homebrew/game used
parts needed :
1x flashchip MX29F1610
1x 22uf capacitor
2x 100nf capacitors
1x pic 12f629 or 12f675 in SOIP programmed with supercic HEX
1x 10k resistor
need order pcb in ENIG and 1.2mm thickness
NOT 1.6mm VERY IMPORTANT
Oct 29,2024
165 views
SNES 2mb flashcard Lorom/Hirom nosave pcb
an snes 2mb lorom/hirom nosave flashcard
165
1
0
Published: Oct 29,2024
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2024/10/29 (GMT+8)
File update record
2024-10-2909:04:52
Parts List (BOM) is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial-NoDerivs (CC BY-NC-ND)
License.
