Description

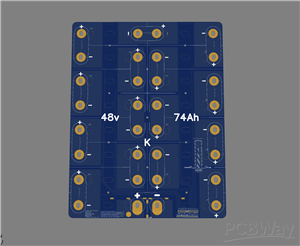

48v Lithium Battery Busbar for LEV60F LiFePO4 cells
This Project helps you easily build a 48v battery using the 74Ah LEV60F LiFePO4 cells.
This board makes it easy to connect a BMS using the green connector.
32x M6x1.25 Nuts https://www.mcmaster.com/90710A120/
16x LEV60F cells - https://j35.us/LEV60-LiFePO4
10pin ,5pin ,2pin PCB screw terminal connector https://amzn.to/3qhUFdf
2Awg Terminal Blocks https://s.click.aliexpress.com/e/_De9fam9
BattGo Balancer https://j35.us/BattGo-BG-8S
BattGo Balance Cable https://s.click.aliexpress.com/e/_DEa4ojF
Recommended BMS -
1 Hole Spacer -
55mm Spacer -
43mm Spacer -
