I wanted to replicate the design of those cool looking "Nixie Tube" clocks but with a freeform circuit style that I enjoy making, so I decided to make this. Overall I think this idea can be taken further and a lot of others things could be built with this style of 7 segment led display (I have a lot of ideas in my mind, just need some time to make them).

This design does require a fair bit of soldering work and does take some time and patiences to complete, but the end result is definitely worth it.

Step 1: Templates

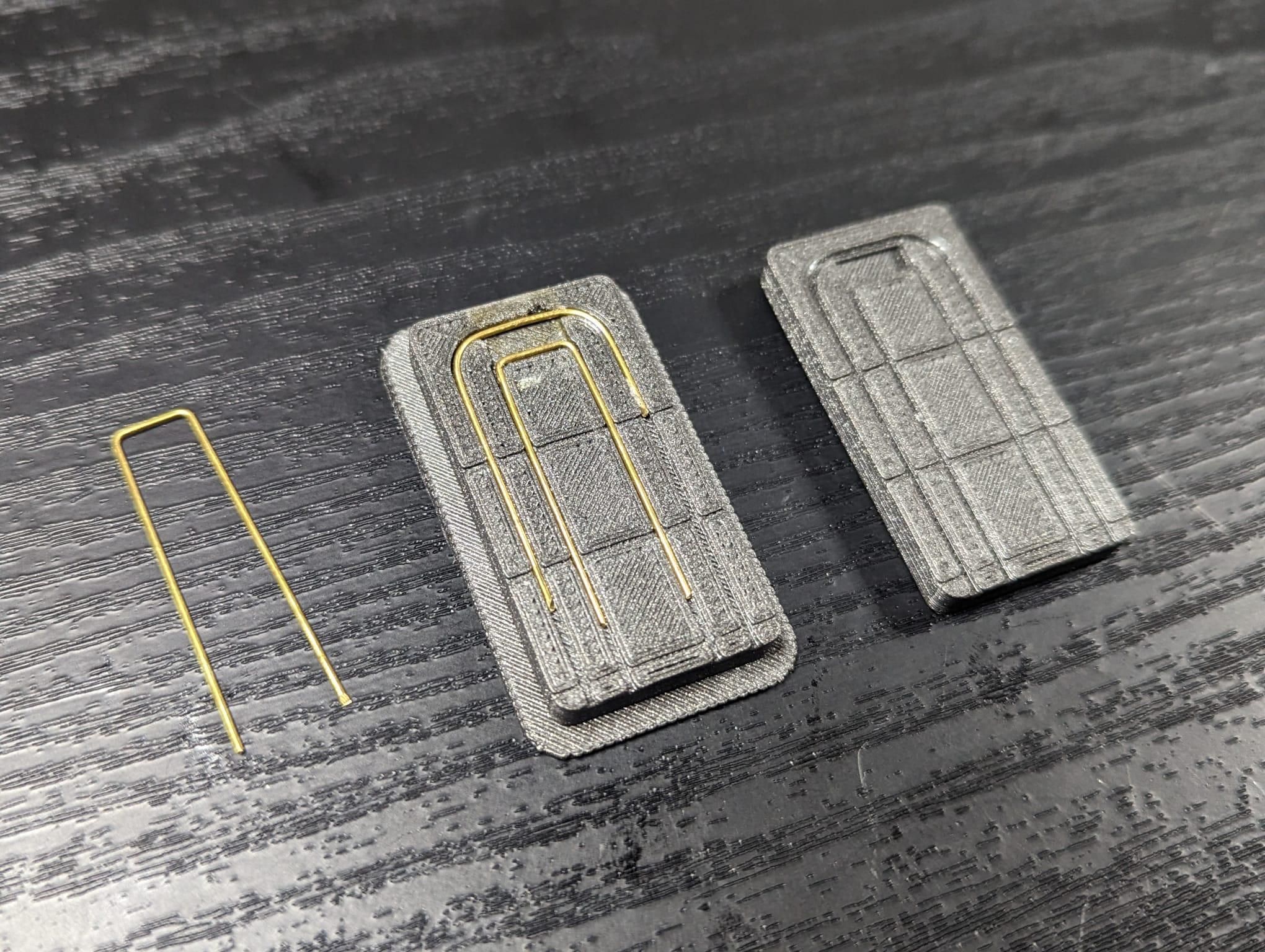

So like with a lot of my other work, I have provided both a 3D printable template as well as a 2D template, which can be used to bend the brass wires into the correct shapes. If you want the nice rounded edges on the brass wire I would suggest using the 3D printable template (shown above) as its much more difficult to get the round edges using the paper templates.

I would also highly recommend, keeping each of the brass wires a little longer and cutting them down to size at the end as needed (use the template more as a rough guideline).

Step 2: Placement of LEDs

The placement of the LEDs is also very important as each of the segments have a specific Positive and negative connection on the board that it will be connected on.

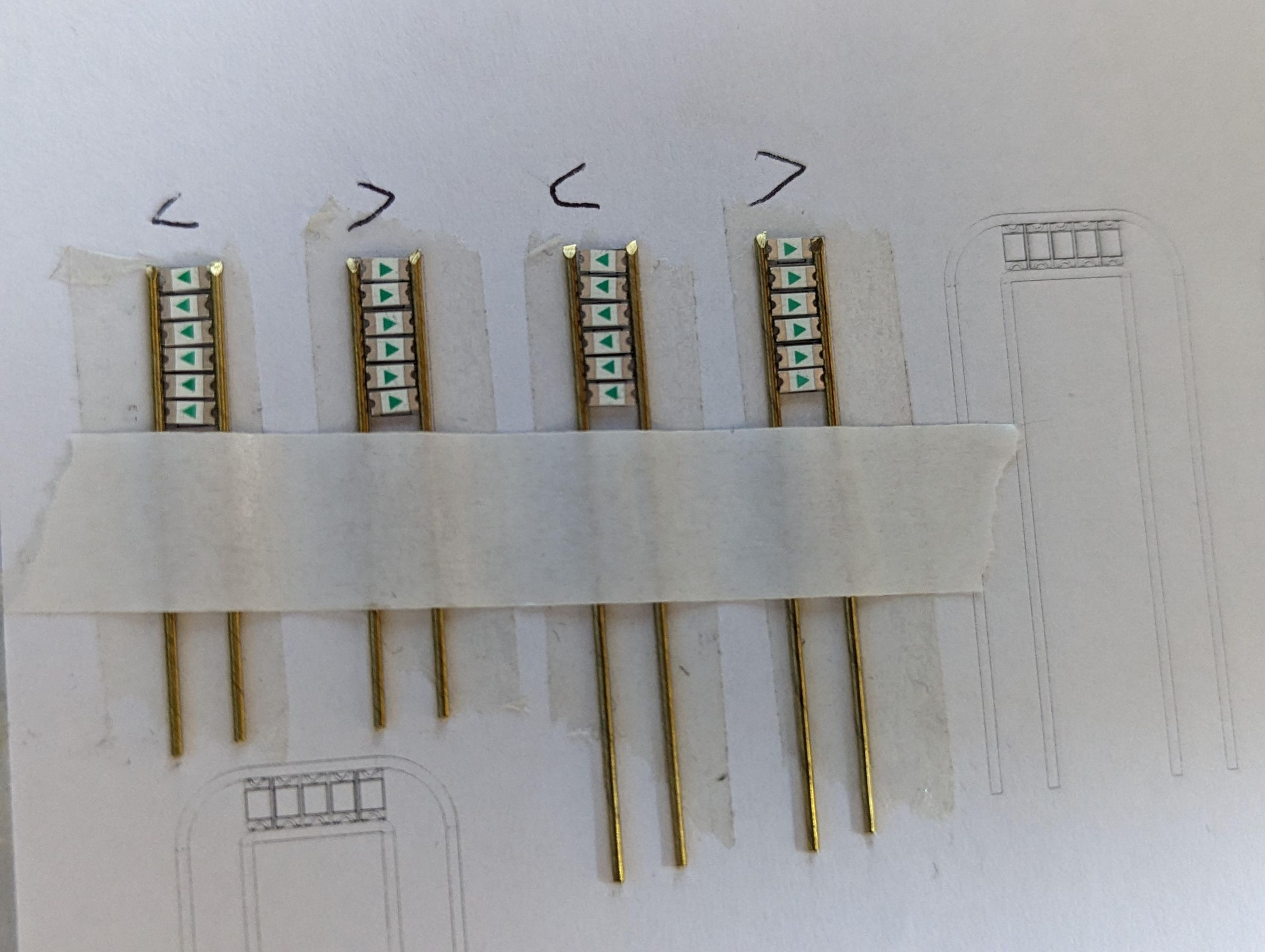

Please do follow the orientation on the templates and do look at the images attached (The outer pins of the segments are used to provide the positive voltage).

The newer templates uploaded in this instructable should make it clear and easy to understand, so you do not need to draw on the template like I did in the picture above.

Step 3: Producing the 7 Segments for Each Module

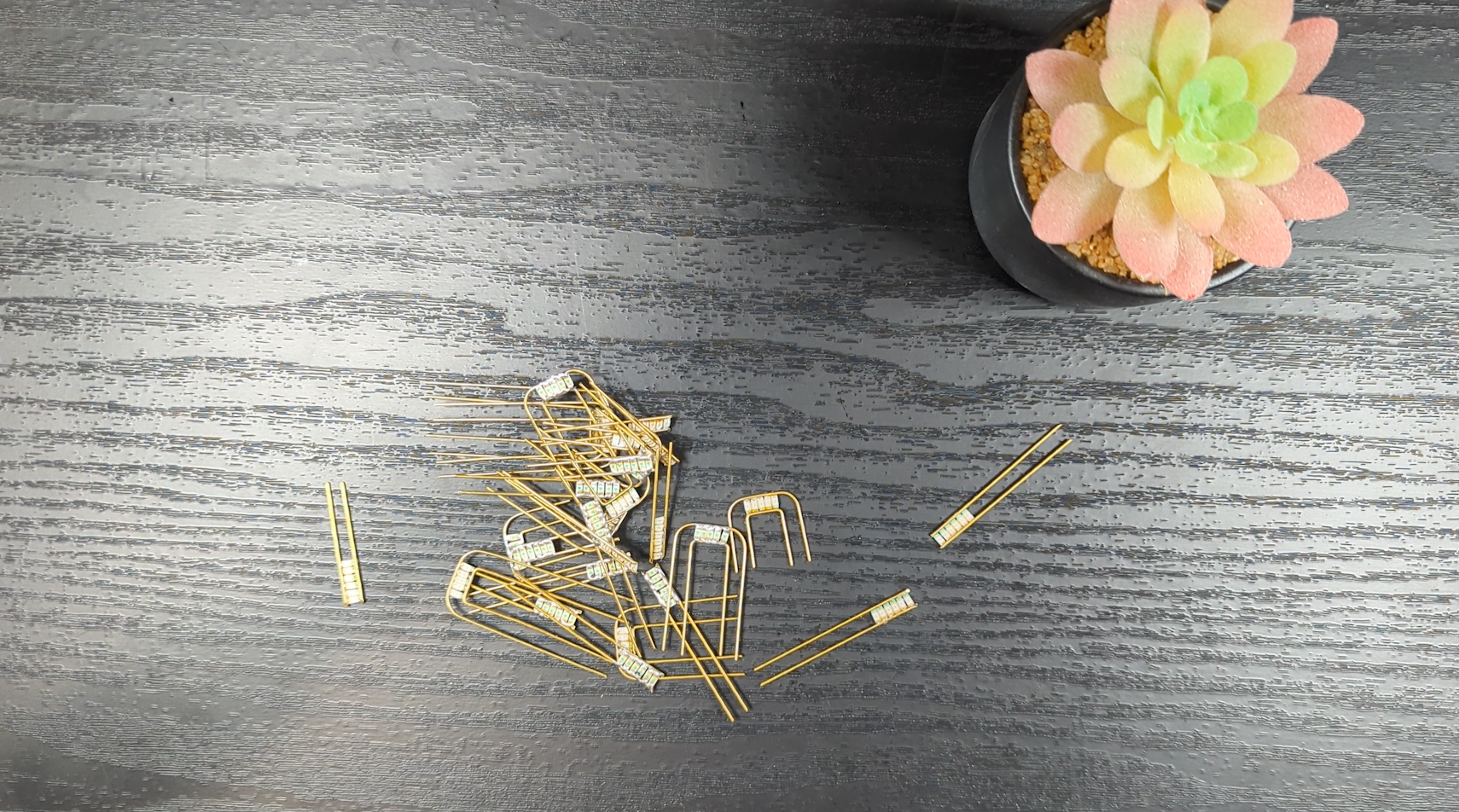

Each of the modules require 7 segments that needs to be made and assembled correctly, so that the module can display the digits from 0 - 9. This can be seen in the image above.

I would also highly recommend testing each of the segments with a voltage source (I used a 3V cell which works well without needing any additional components)

Step 4: Producing the PCB

The design of the PCB is based on sparkfun Large Digit Driver (I had to modify the board a little to fit the footprint and the design that I was making)

This is the link to the driver: https://www.sparkfun.com/products/13279

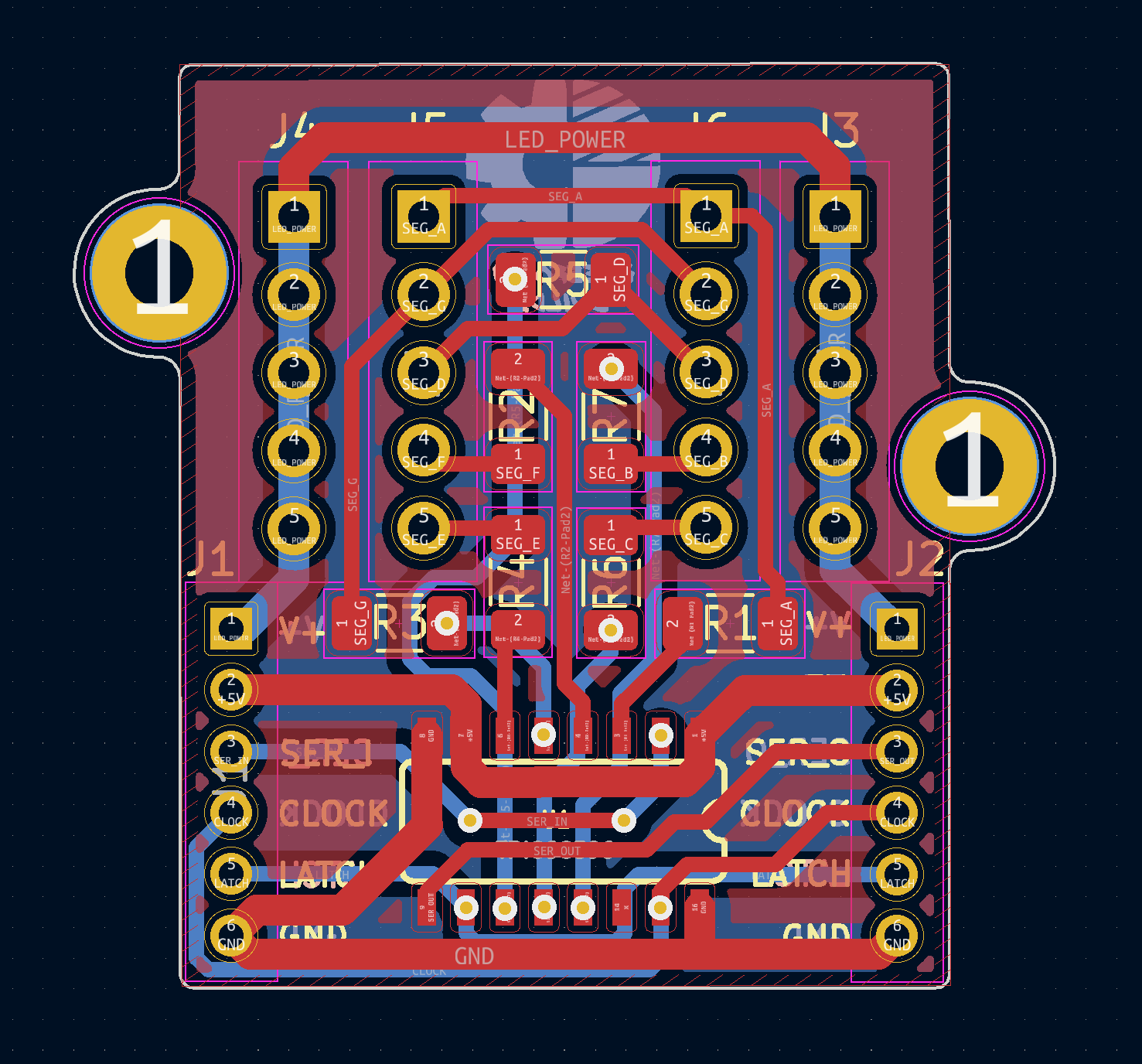

The PCB circuit is displayed above in the picture that was produced using PCB manufacturing service from PCBWAY, this allows each of the 7 segments to be indvidually removed or installed and they can also be daisy chained together to form the digits.

The PCB simply requires 3 types of components that you need to solder to produce them. You will need to create 4 identical PCBs.

The files to order your own PCB is attached.

Step 5: Design of the Base

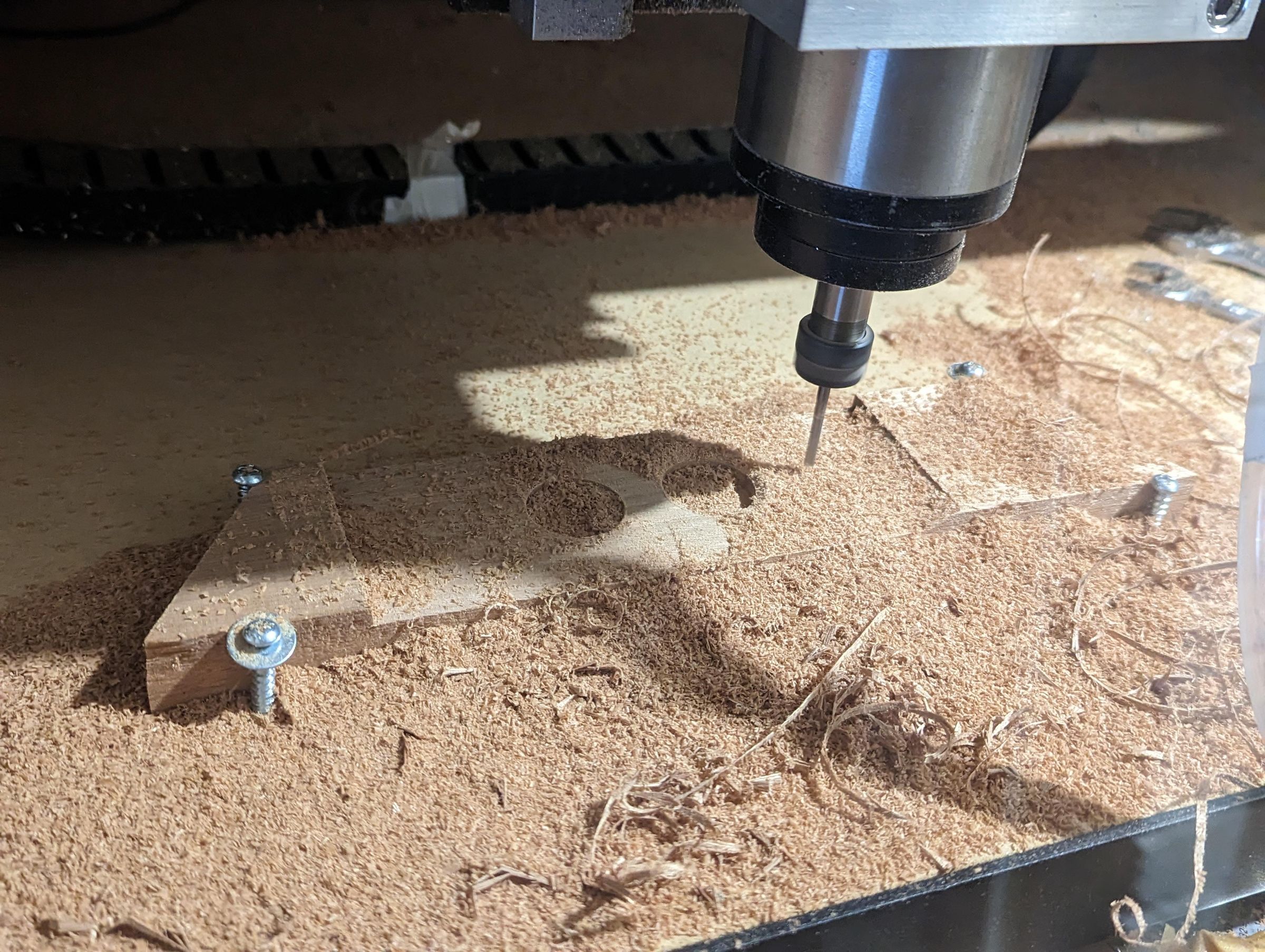

The bottom base which houses all the components is machined out of wood however I have also made a 3D printable version which I have provided as an STL file.

Step 6: Attaching the PCBs to the Base

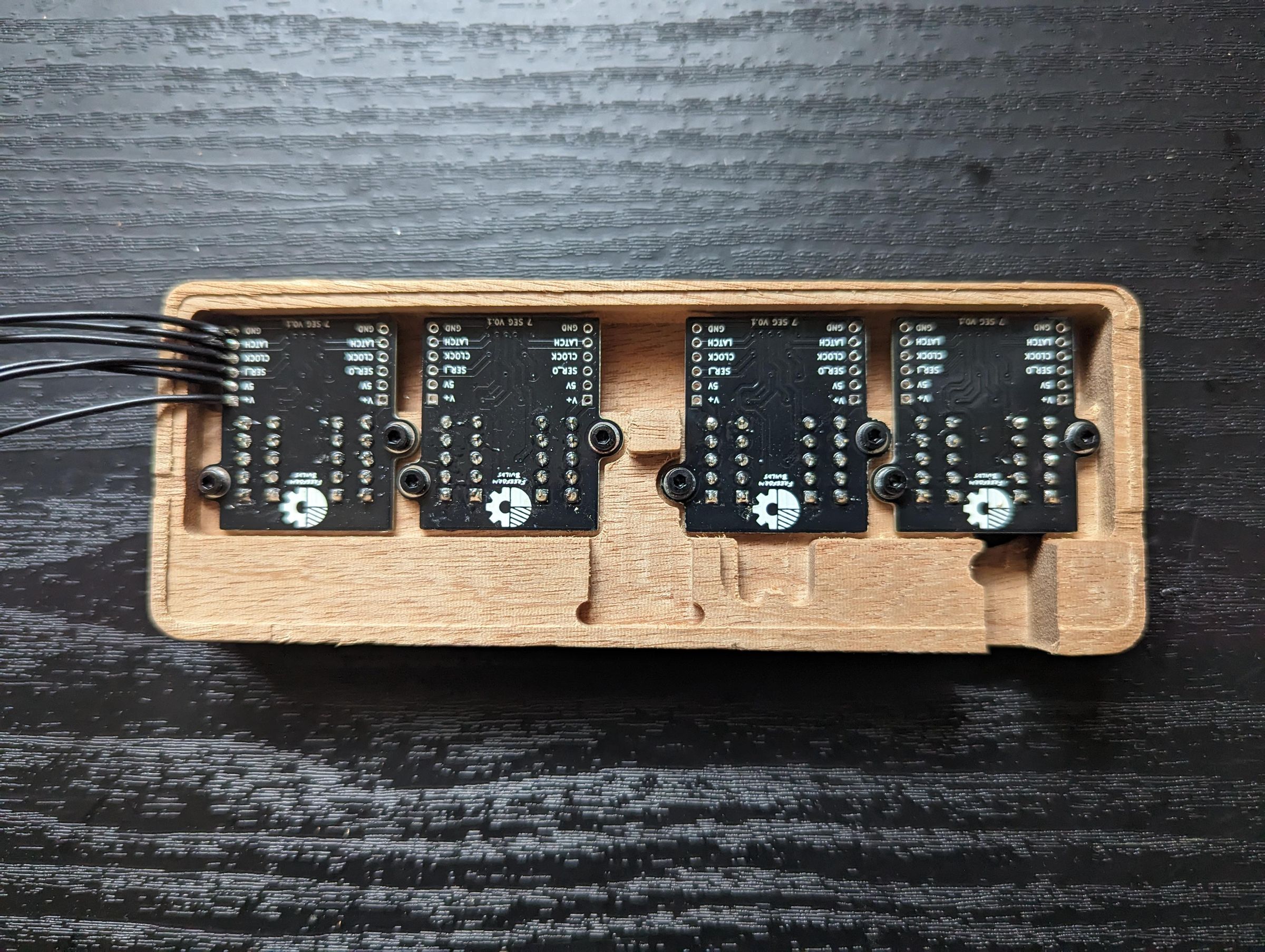

The M2 inserts are press fitted into the wooden base to allow the screws to be used to fix the PCBs in place.

This process will be much easier on a 3D printed part as the heat inserts are much easier to install in plastic.

The bottom cover is 3D printed, which is used to hide all the wiring.

Step 7: Connections of the Individual Modules

Each of the modules are designed to be daisy chained together to produce the clock. Each of the modules are connected as seen in the image above.

Step 8: Arduino and RTC Connection

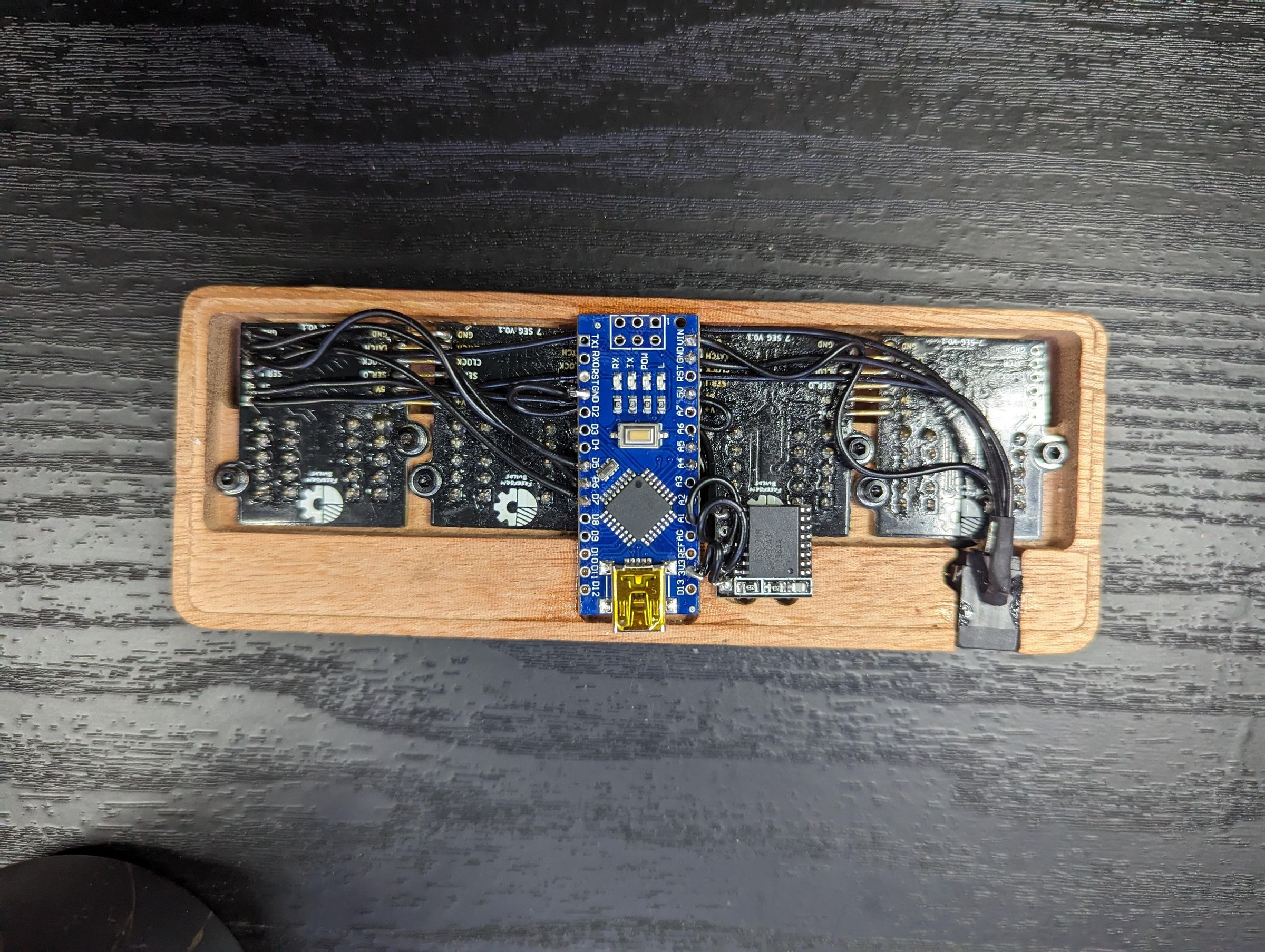

The arduino nano and the mini RTC is glued onto the base (I was in a bit of a hurry to get this completed :p)

Wiring for 7 Seg modules:

Arduino Pin 6 is connected to CLOCK

Arduino Pin 5 is connected to LATCH

Arduino Pin 7 is connected to SER_I

Arduino 5V is connected to 5V

Arduino GND is connected to GND

The V+ on the 7seg module to power the LEDs should come directly from the 5V power supply.

Wiring for DS3231 Mini RTC:

Arduino Pin A5 is connected to SCL

Arduino Pin A4 is connected to SDA

Arduino 3.3V is connected to Positive

Arduino GND is connected to GND

There is enough space on the bottom of the base, to create a custom PCB that houses the arduino as well as the RTC. I will most likely look into this in the future when I update the design.

Step 10: Arduino Programing

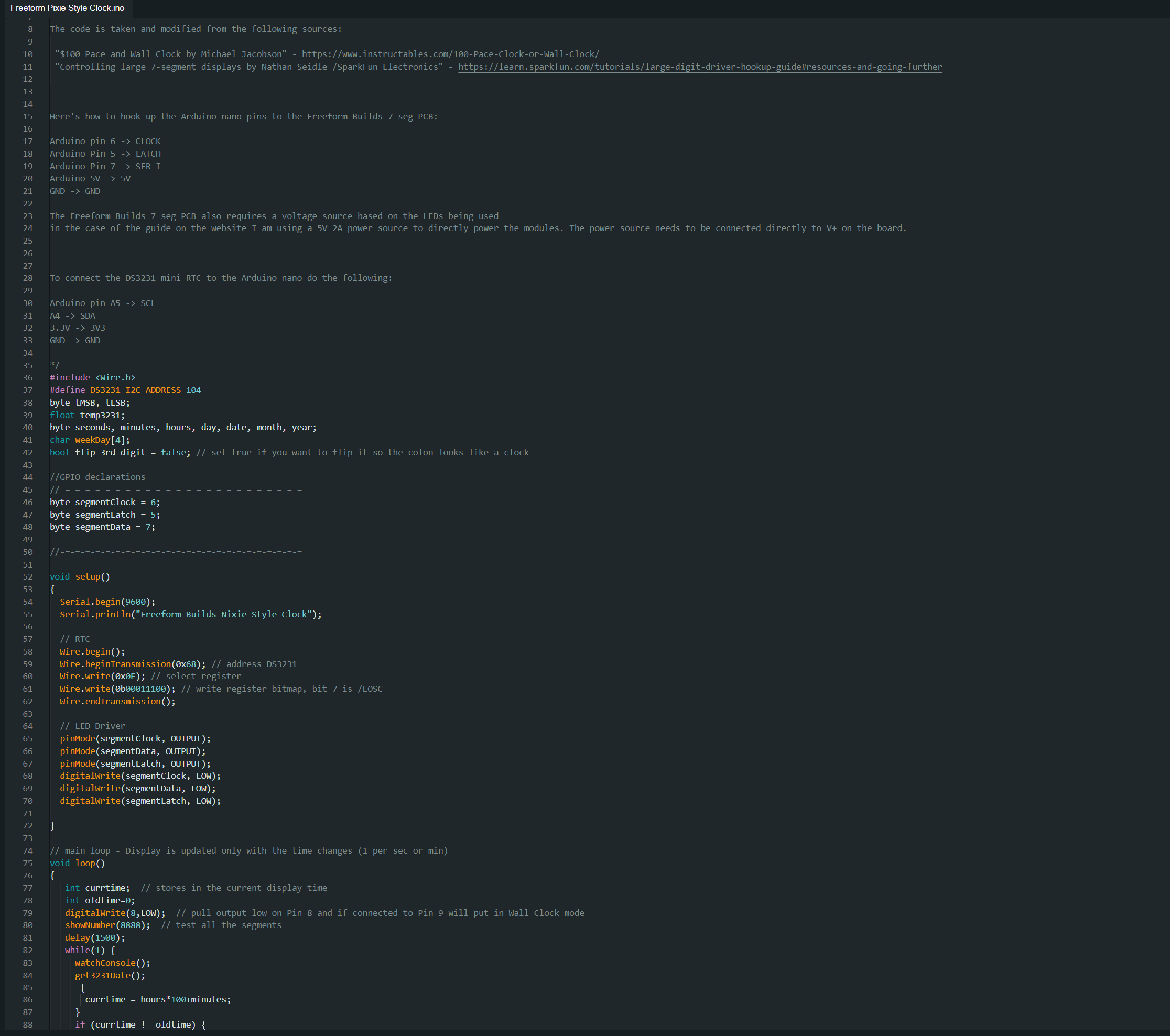

Arduino coding is not my strong point, but I have managed to get it working with the code from other places. If you have suggestions or ways to improve the code do post it in the comments below

The RTC is programed through the serial monitor:

The format is T(sec)(min)(hour)(dayOfWeek)(dayOfMonth)(month)(year)

T(00-59)(00-59)(00-23)(1-7)(01-31)(01-12)(00-99)

Example: 02-Feb-09 @ 19:57:11 for the 3rd day of the week -> T1157193020209

So enter your current time in correct format and then press the send button. Now you clock should be displaying the correct time!

Step 11: Finished Build

Hope you all like this build, I have plans to work on this further and improve it in the future so I am open to feedback and also do share your build if you decide to make this or do something similar using the templates provided.

For anyone wondering how it looks from the side, I was impressed and its not too bad from the side as the segments are fairly close together. But its never going to be perfect from the sides.
