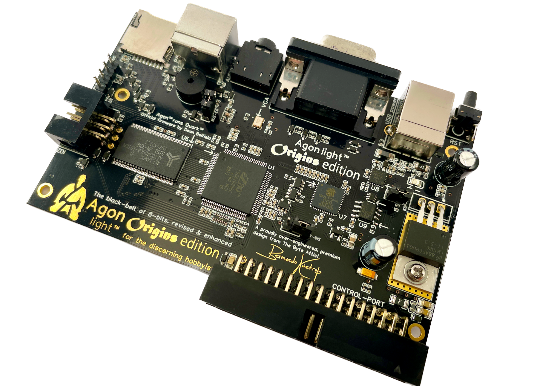

Agon light ORIGINS Edition
Main website: https://www.thebyteattic.com/p/agon.html
Github: https://github.com/TheByteAttic/AgonORIGINS
Agon light™ is a unique combination of instant-on microcomputer and standalone microcontroller, which allows you to control your projects from the convenience and immediacy of a BASIC prompt, without the need for a host PC or sketch compilation.
Schematic and Layout
Schematics
https://github.com/TheByteAttic/AgonORIGINS/blob/main/Design/Agon%20ORIGINS%20Schematics.pdf
CAD-Custom parts and enclosures
Agon ORIGINS PCB back.svg
Agon ORIGINS PCB front.svg
Agon ORIGINS PCB 3D model.zip
Feb 24,2024
1,193 views
end-flag
Agon light ORIGINS Edition

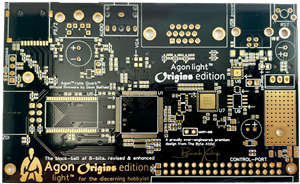

4 Layers PCB 64.9 x 106 mm FR-4, 1 mm, 1, Immersion gold, Black Solder Mask, White silkscreen
The more robust and refined board revision of the renowned Agon light SBC/BASIC-programmed microcontroller.
