Description
CANBUS Adapter for SKR Mini E3 V2 and V3
Project to create a plug in CAN board for the EXP1 socket on the SKR Mini E3 V2 and V3.

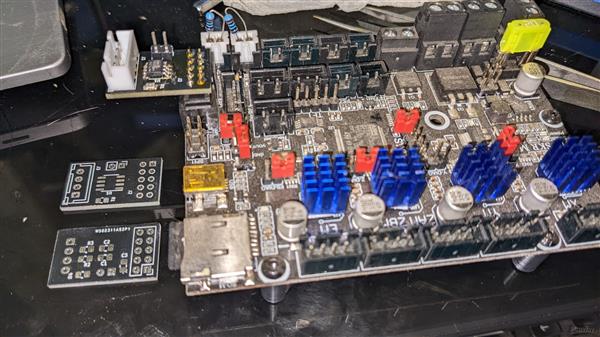

I did a proof of concept with a commercially available MCP21551 can transceiver board and jumpers ( pictured)
Knowing it works well in I moved on to designing a plug and play version that can plug directly into the EXP1 port on the SKR Mini.
Github Link to the SKR Mini E3 CANBUS guide
Wiring Diagram
Schematic and Layout
Schematic
Sep 23,2022
5,514 views
end-flag
CANBUS Adapter for SKR Mini E3 V2 and V3
CANBUS Transceiver for the SKR Mini E3 V2 and V3 board. Plugs into the EXP1 port.
5514
1
4
Published: Sep 23,2022
Download Gerber file 10
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-point Touch, 32-bit LX7 Dual-core Processor
BUY NOW
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
Topic
- Comments(4)
- Likes(1)
More by Scott Schering
You may also like
-
Modifying a Hotplate to a Reflow Solder Station
207 0 2 -
MPL3115A2 Barometric Pressure, Altitude, and Temperature Sensor
164 0 1 -
-
-
V2 Commodore AMIGA USB-C Power Sink Delivery High Efficiency Supply Triple Output 5V ±12V OLED display ATARI compatible shark 100W
416 4 1 -
How to measure weight with Load Cell and HX711
439 0 3 -
-
Instrumentation Input, high impedance with 16 bit 1MSPS ADC for SPI
543 0 0
I should have my first batch of boards for testing here soon.. When I get one assembled I'll post an update of how it connects. The need for the 120 ohm termination resistor depends on your can bus configuration.
Okay thank your for your command, i want use "BTT EEBB42 Support CAN BUS Connector" that has 120ohm terminastion , i can Set to aktiv Mode oder deaktv with jumper....this is a exdruder side ...and dont know If i need other 120ohm on the skr Mini side ...that is my problem ...thank you for all information.
If you have it on the same bus with a EBB42 and it's jumpered you should be ok without the resistor. THis is assuming they are both being connected to a U2C and it's 120 ohm jumper is in place. Overall you want the bus to measure 60 ohms between can H and can L ( powered off ) Just want to say that SKR board is not going to act as a USB bridge.. you will need some kind of USB to can bridge like a U2C or a can hat on the pi. This just lets you link the SKR by can instead of USB.
