ESP32 CNC Board

esp32 CNC, capable of using drivers for TM2209 stepper motors and also standard external drivers from the same board.

2369

Published: Sep 04,2023

BOM(Bill of materials)

Centroid file

PCBWay Donate 10% cost To Author

Only PCB

PCB+Assembly

Add to cart

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the Attribution-ShareAlike (CC BY-SA) License.

Smart Soldering Iron TS101-BC2

BUY NOW

Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）

BUY NOW

ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-point Touch, 32-bit LX7 Dual-core Processor

BUY NOW

MHP50-B5 Mini Hot Plate Preheater

BUY NOW

Smart Soldering Iron TS101-BC2

BUY NOW

Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）

BUY NOW

Topic

Hardware

CNC

ESP32

6th Design Contest-Electronic Project ESP32

Comments(5)
Likes(8)

Upload photo

You can only upload 5 files in total. Each file cannot exceed 2MB. Supports JPG, JPEG, GIF, PNG, BMP

0 / 10000

PCBWay Team

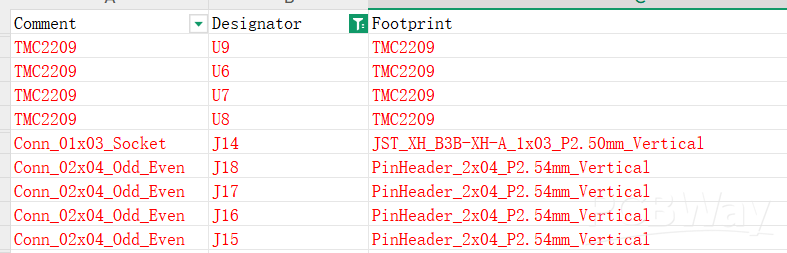

Thanks for sharing. Could you please provide the specific part number or purchasing link for following components?

Upload photo

0 /10000

You can upload up to 5 images!
Image size should not exceed 2MB!
File format not supported!

Mar 30,20250 Comments
Reply
LuckSkyGyver
Cool proyect

Upload photo

0 /10000

You can upload up to 5 images!
Image size should not exceed 2MB!
File format not supported!

Sep 11,20231 Comments
Joan Peralta 2024-02-27 03:54:20Reply
THX
0 /10000

Reply
Engineer
What is max input power ?

Upload photo

0 /10000

You can upload up to 5 images!
Image size should not exceed 2MB!
File format not supported!

Feb 19,20241 Comments
Joan Peralta 2024-02-27 03:54:11Reply
60V DC
0 /10000

Reply

VOTING 0 votes

VOTE NOW !

0 USER VOTES

0.00

YOUR VOTE 0.00 0.00

Design 1/4

Usability 2/4

Creativity 3/4

Content 4/4

More by Joan Peralta

You may also like

Low Power AM Transmitter with BluetoothThis DIY AM transmitter lets you wirelessly broadcast music or audio from any Bluetooth-enabled device to vintage AM radios around your home or workshop. Designe...
Low Power AM Transmitter with Bluetooth

265 0 0
Manuel Caldeira

Manuel Caldeira

PORTUGAL

256

3
Compact design for high efficiency (>93%) USB-C Power Supply for Commodore 1541-II or 1581 External Floppy Disk Drive Unit.Improved efficiency, static line/load regulation, and reduced output rippl...
Commodore 64 1541-II 1581 Floppy Disk Drive C64 Power Supply Unit USB-C 5V 12V DIN connector 5.25

329 1 3
Edoardo kinmami

Edoardo kinmami

JAPAN

268

15
A very simple stacking organizer with drawers. You need the base one to start with, it is called the bottom layer modular stacking organizer. You can then stack as many of the ones with feet on top of...
Easy to print simple stacking organizer with drawers

119 0 0
Anders Koch

Anders Koch

UNITED STATES OF AMERICA

0

0
The French Exelvision computer from the 1980s was a bit of an oddity as it was the only computer to utilise the Texas Instruments TMS 7220 microcontroller for its CPU.As with a lot of machines from th...
Exelvision ROM Cartridge (4Mbit)

209 0 1
Brett Hallen

Brett Hallen

AUSTRALIA

2

0
MK4 7-Inch Drone Propeller GuardsThis project is proudly sponsored by PCBWay – Your One-Stop Solution for PCB and 3D Printing ServicesI’m excited to share my new propeller guards designed for the&nbsp...
Propeller Guards for Mk4 7 inch Drone

379 0 1
ATRO

ATRO

UNITED STATES OF AMERICA

0

1
A portable, NFC controlled, MP3 player.
NFCMusicPlayer

405 0 3
Luca Dentella

Luca Dentella

ITALY

28

0
The Controller module is a DIN rail mountable ESP32-POE (by Olimex) which can be connected to the IO module. It is intended as a DIY project for anyone who is already familiar with ESPHome and ha...
OpenDINRail Controller - Feudal Technologies

57 0 0
Engineer

Engineer

GERMANY

0

0
The IO module is a DIN rail mountable input output module which can be connected to the controller module. It is intended as a DIY project for anyone who is already familiar with ESPHome and has ...
OpenDINRail IO module (bottom PCB) - Feudal Technologies

52 0 0
Engineer

Engineer

GERMANY

0

0
The IO module is a DIN rail mountable input output module which can be connected to the controller module. It is intended as a DIY project for anyone who is already familiar with ESPHome and has ...
OpenDINRail IO module (top PCB) - Feudal Technologies

51 0 0
Engineer

Engineer

GERMANY

0

0
This is a project to modify a UYUE 946C model hotplate and convert it to a reflow soldering station.The UYUE 946C hotplate is modified by replacing the original controller and by adding an additional ...
Modifying a Hotplate to a Reflow Solder Station

1220 1 6
Paul Versteeg

Paul Versteeg

NETHERLANDS, THE

14

12
IntroductionThe MPL3115A2 is a highly accurate, low-power digital barometric pressure sensor from NXP Semiconductors. It is designed to measure barometric pressure, altitude, ...
MPL3115A2 Barometric Pressure, Altitude, and Temperature Sensor

695 0 1
Rabin Poudel

Rabin Poudel

NEPAL

14

0
YOU MUST ORDER WITH ENIG FINISH AT 0.8MM THICKNESS!This is an updated design of my flashable MBC1-based cartridge for the Game Boy. The MBC1 mapper was used in many of the earlier Game Boy games, such...
Game Boy MBC1 Cartridge (M29F160, SRAM)

632 0 2
Nick

Nick

UNITED STATES OF AMERICA

73

0

	board: ESP32_CNC
	name: 4 Pack External XYZA
	stepping:
	engine: I2S_STREAM
	idle_ms: 250
	pulse_us: 4
	dir_delay_us: 1
	disable_delay_us: 0

	axes:
	shared_stepper_disable_pin: NO_PIN
	x:
	steps_per_mm: 800.000
	max_rate_mm_per_min: 5000.000
	acceleration_mm_per_sec2: 100.000
	max_travel_mm: 300.000
	soft_limits: false
	homing:
	cycle: 2
	allow_single_axis: true
	positive_direction: false
	mpos_mm: 1.000
	seek_mm_per_min: 200
	feed_mm_per_min: 50
	seek_scaler: 1.5
	feed_scaler: 1.5

	motor0:
	limit_neg_pin: gpio.34
	limit_pos_pin: NO_PIN
	limit_all_pin: NO_PIN
	hard_limits: false
	pulloff_mm: 1.000
	standard_stepper:
	step_pin: I2SO.2
	direction_pin: I2SO.1
	disable_pin: I2SO.0

	y:
	steps_per_mm: 800.000
	max_rate_mm_per_min: 5000.000
	acceleration_mm_per_sec2: 100.000
	max_travel_mm: 300.000
	soft_limits: false
	homing:
	cycle: 2
	positive_direction: true
	mpos_mm: 150.000
	feed_mm_per_min: 100.000
	seek_mm_per_min: 200.000
	settle_ms: 500
	seek_scaler: 1.100
	feed_scaler: 1.100

	motor0:
	limit_neg_pin: NO_PIN
	limit_pos_pin: NO_PIN
	limit_all_pin: NO_PIN
	hard_limits: false
	pulloff_mm: 1.000
	standard_stepper:
	step_pin: I2SO.5
	direction_pin: I2SO.4
	disable_pin: I2SO.7

	z:
	steps_per_mm: 800.000
	max_rate_mm_per_min: 5000.000
	acceleration_mm_per_sec2: 100.000
	max_travel_mm: 300.000
	soft_limits: false
	homing:
	cycle: 2
	positive_direction: true
	mpos_mm: 150.000
	feed_mm_per_min: 100.000
	seek_mm_per_min: 200.000
	settle_ms: 500
	seek_scaler: 1.100
	feed_scaler: 1.100

	motor0:
	limit_neg_pin: NO_PIN
	limit_pos_pin: NO_PIN
	limit_all_pin: NO_PIN
	hard_limits: false
	pulloff_mm: 1.000
	standard_stepper:
	step_pin: I2SO.10
	direction_pin: I2SO.9
	disable_pin: I2SO.8

	a:
	steps_per_mm: 800.000
	max_rate_mm_per_min: 5000.000
	acceleration_mm_per_sec2: 100.000
	max_travel_mm: 300.000
	soft_limits: false
	homing:
	cycle: 1
	positive_direction: true
	mpos_mm: 150.000
	feed_mm_per_min: 100.000
	seek_mm_per_min: 800.000
	settle_ms: 500
	seek_scaler: 1.100
	feed_scaler: 1.100

	motor0:
	limit_neg_pin: NO_PIN
	limit_pos_pin: NO_PIN
	limit_all_pin: NO_PIN
	hard_limits: false
	pulloff_mm: 1.000
	standard_stepper:
	step_pin: I2SO.13
	direction_pin: I2SO.12
	disable_pin: I2SO.15

	i2so:
	bck_pin: gpio.22
	data_pin: gpio.21
	ws_pin: gpio.17

	spi:
	miso_pin: gpio.19
	mosi_pin: gpio.23
	sck_pin: gpio.18

	sdcard:
	card_detect_pin: NO_PIN
	cs_pin: gpio.5


	start:
	must_home: false

	Laser:
	pwm_hz: 5000
	output_pin: gpio.14
	enable_pin: NO_PIN
	disable_with_s0: false
	s0_with_disable: false
	tool_num: 0
	speed_map: 0=0.000% 255=100.000%
	off_on_alarm: true

ESP32-WROOM-32E-N4
