Description

Educational logic gates PCB

This PCB project designed to learning students how logic gates works

Parts list:

IC 4011

IC 4081

IC 4071

IC 4030 or 4070

LED Green (8pcs)

LED Red (14pcs)

IC Socket 14dip (4pcs)

C1 Capacitor 220uF 10V

C2 Capacitor 100nF

R1 to R15 (except R5) Resistor 10K (14pcs)

R5-R16-R15 Resistor270R (3pcb)

Push button switch (14pcs)

Micro USB socket

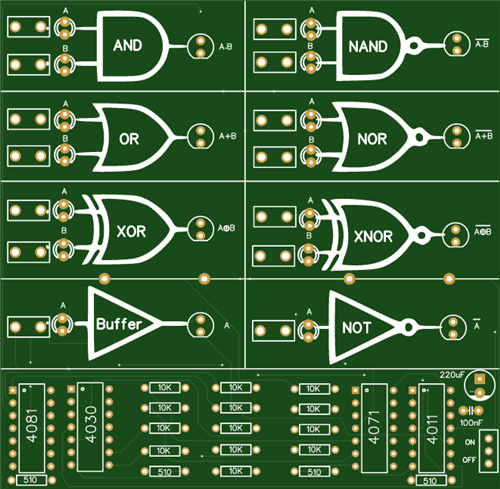

The circuit used 4 ICs to simulation 8 basic logic gates (AND-NAND-OR-NOR-NOT-XOR-XNOR-Buffer)

You can watch this video to see how this circuit works: https://www.youtube.com/watch?v=A-95Z9r1ylA

Jan 08,2019

12,438 views

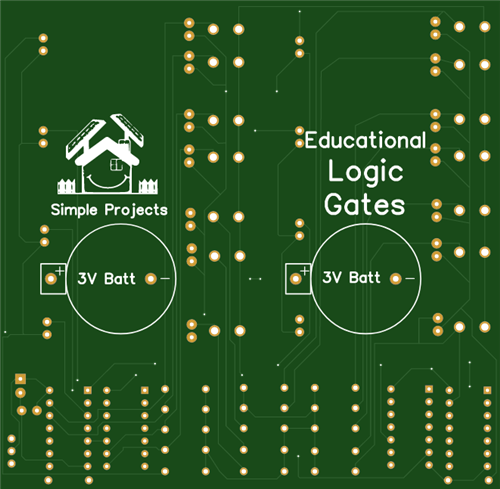

Educational logic gates PCB

2 Layers PCB 100 x 98 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen

12438

13

11

6.78 (8)

Published: Jan 08,2019

PCBWay Donate 10% cost To Author

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the Attribution-ShareAlike (CC BY-SA) License.
