Funway into SME: Project 1 - LED FLasher
The first in the Funway into SME series, A Simple LED Flasher, that is an example of an Astable Multi Vibrator, which is the basis for a simple oscillator. This circuit will show up again later in the series. (Minus the LED's)
Schematic and Layout
LED Flasher Files
https://github.com/Celcius1/Funway-into-SME/tree/main/LED%20Flasher
Oct 10,2023
510 views
Funway into SME: Project 1 - LED FLasher
2 Layers PCB 37.4 x 37.4 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

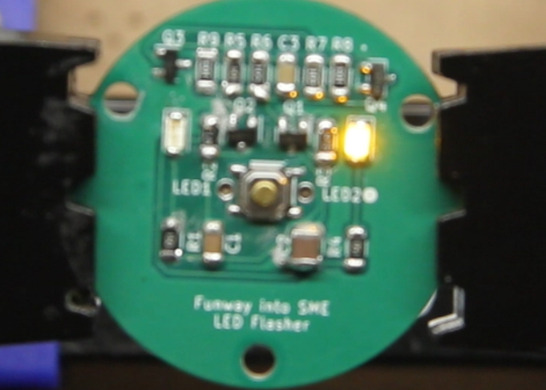

A Simple LED Flasher with in built switch
