ILI9341 Display and LOLIN D32 Carrier Board
Greetings.
So this is the Carrier Board that is basically a connection board for connecting ILI9341 Display with Wemos Lolin D32 Pro Board.
The goal for preparing this project was to make a setup for connecting the display with the ESP32 board without using wires and a breadboard for preparing display-related projects.
This board serves as a replacement for the breadboard setup that we do for connecting the display with ESP32 Board.
This Article contains the built process of the Carrier Board along with ESP32 and ILI9341 Display implementation with the tft_eSPI Library.
Let's get started!
Material Required
Following are the stuff required in this built-
- ILI9341 Display
- Wemos Lolin D32 Pro
- Custom PCB (that were provided by PCBWAY)
- Female Header Pin Connector for Display and ESP32 Board

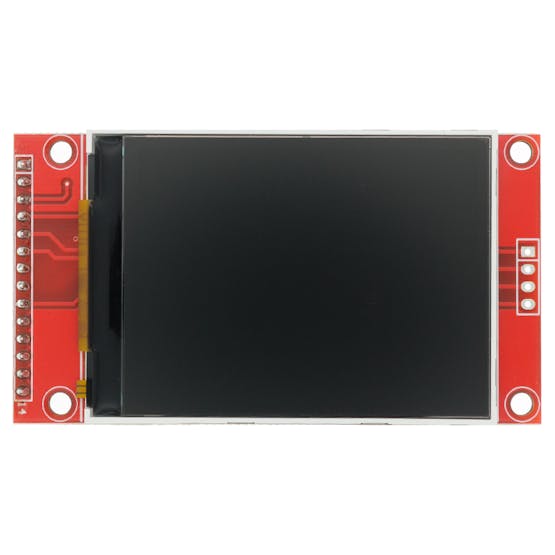

About the ili9341 display
ILI9341 is a 262,144-color single-chip SOC driver for a TFT liquid crystal display with a resolution of 320x240 pixels.
ILI9341 can operate with 1.65V ~ 3.3V I/O interface voltage and an incorporated voltage follower circuit to generate voltage levels for driving an LCD.
The Display Module used in this project has a touch interface inbuilt with an SD card reader slot that we can use to read SD card data.
Following are ILI9341 Pinout-
- PIN1- VCC
- PIN2- GND
- PIN3- CS
- PIN4- RESET
- PIN5- DC
- PIN6- MOSI (LCD)
- PIN7- SCK (LCD)
- PIN8- LED
- PIN9- MISO (LCD)
- PIN10- T_CLK
- PIN11- T_CS
- PIN12- T_DIN
- PIN13- T_D0
- PIN14- T_IRQ
Using ESP32 Lolin D32 Pro
Wemos Lolin D32 Pro is being used to drive the display in this project.
It's based on the ESP32-WROVER module with 16MB/4MB FLASH, 4MB PSRAM and has an SD card reader on board with a Display port and an I2C connector.
Wiring Connection
As for basic wiring between ESP32 Board and ILI9341 Display, we connect both of them by following the wiring diagram.
- VCC of the display to 3.3V
- GND to GND
- CS (LCD) to D27
- RESET to D26
- DC to D14
- MOSI to D23
- SCK to D18
- LED to 3.3V (this is for backlight)
- MISO to D19
- Touch CLK to D18 (SCK)
- Touch CS to D21
- Touch DIN to D23 (MOSI)
- Touch DO to D19 (MISO)
PCB DESIGN

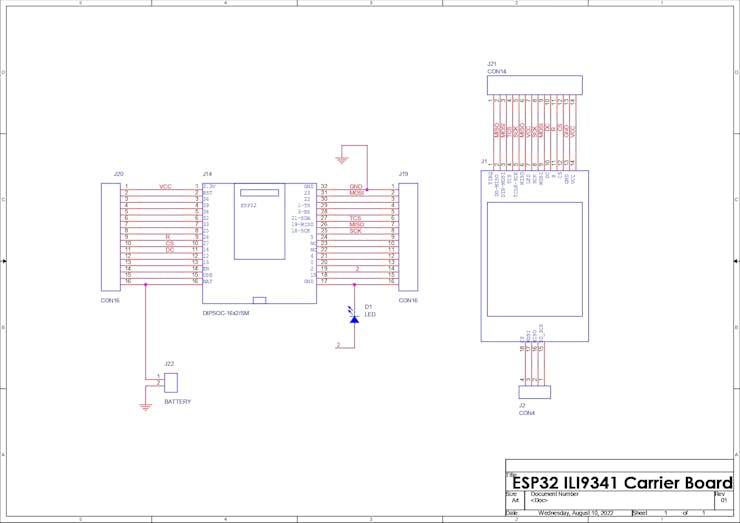

To Prepare the Carrier Board, we use the wiring connections and prepare a simple schematic that breakouts all the pins and adds Header Pins for connecting the Display with ESP32.
Also, there's a CON2 for adding an external battery for powering this setup along with an LED connected with D2 of the ESP32.
After finalizing the Schematic file, we convert it into a board file and prepare the PCB in a 96mm x 55mm form factor.
the ILI9341 Display is added on TOP Side and the ESP32 is on the Bottom Side, we add additional connectors near the display port and ESP32 connections so we can add header pins to these connectors for using ESP32 GPIO Pins or use Display pins.
After finalizing the Board, we check it one last time and then export its Gerber data so we can send it to a PCB Manufacturer for samples.
PCBWAY
After finishing the PCB Design and exporting the Gerber data, we upload it on PCBWAY's Quote page for placing an order.
RED Soldermask is being used for this project as we already have tired RED PCBs in past projects and it looks pretty, Also the display has RED PCB so using RED Soldermask just seems right.
PCBs got delivered in a week which was super fast.
As for the quality of the PCBs, each PCB were made properly and there were no error or misprints anywhere.
Overall quality was super and I recommend you guys for checking them out if you need great PCB service for less cost.
Next, we prepare for the board assembly process.
Board Assembly
We first gather all the components that we need for the assembly process that including header pins for ESP32 and LCD Screen along with Custom PCB and a PCB Holding Jig for the soldering process.
- We start first by adding PCB to the PCB Soldering Jig.
- Next, we add header pins for the display on the TOP Side of the PCB, we add Kapton tape to keep header pins in their place while soldering. (Kapton Tape is a thermal resistive tape used in electronics, also known as golden tape, used in batteries or cells)
- We solder the connector from the bottom side.
- After this, we redo the above process for adding ESP32's header pins by placing the pins in their pads and using Kapton tape to hold the connectors during the soldering process.
- We then solder a Flat 3V LED on the LED connection Pad in the right polarity.
- The Board is now completed
Result So Far.
Here's how the board looks.
We now add ESP32 and Display to the carrier board and prepare the software part of this project.
Library TFT_eSPI

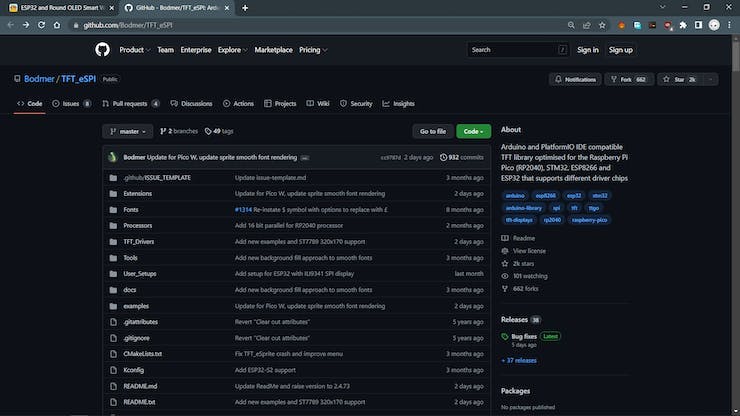

For driving the ILI9341 Display, we use the popular TFT_eSPI Library by Bodmer.
https://github.com/Bodmer/TFT_eSPI
TFT_eSPI is an amazing library that supports all major displays that are used, like ILI9430, ST7735, and even the round LCD GC9A01.
Do check out my previous project about GC9A01 Display if interested, both are similar.
https://www.hackster.io/Arnov_Sharma_makes/esp32-and-round-oled-smart-watch-concept-3a5601
- We first go to its Github Page and download the RAW files.
- Next, we extract the folder in Documents>Arduino>Libraries where we keep all our custom libraries.
- We Open the Arduino IDE and see the TFT_eSPI added in the library manager.
For using Different types of displays, we make changes in the User_Setup file of this library, the default one is set for ILI9341 Display so we dont have to change anything for using the current display but if we want to use a different display like GC9A01 Round LCD, then we have to edit User_Setup.h file.
Note- If you're using ESP32 for the first time, Arduino IDE Doesnt contain ESP32 boards by default, you have to add them by putting the below link in the preferences of Arduino IDE and then adding them through the board manager.
https://dl.espressif.com/dl/package_esp32_index.json
Example sketches
To Test the setup, we first connect the ESP32 Board with Arduino IDE through a USB Cable and change the board to Lolin D32 Pro and also choose the right port.
We goto File>Examples> TFT_eSPI>320x240 and select any sketch for uploading it into the ESP32.
Matrix
We first choose the TFT_Matrix Sketch that displays random numbers and alphabets scrolling from TOP to BOTTOM side of the display just like in the movie matrix.
Here's the sketch-
// A fun MATRIX-like screen demo of scrolling // Screen will flicker initially until fully drawn // then scroll smoothly // Needs GLCD font /* Make sure all the display driver and pin comnenctions are correct by editting the User_Setup.h file in the TFT_eSPI library folder. ######################################################################### ###### DON'T FORGET TO UPDATE THE User_Setup.h FILE IN THE LIBRARY ###### ######################################################################### */ #include <TFT_eSPI.h> // Hardware-specific library #include <SPI.h> TFT_eSPI tft = TFT_eSPI(); // Invoke custom library #define TEXT_HEIGHT 8 // Height of text to be printed and scrolled #define BOT_FIXED_AREA 0 // Number of lines in bottom fixed area (lines counted from bottom of screen) #define TOP_FIXED_AREA 0 // Number of lines in top fixed area (lines counted from top of screen) uint16_t yStart = TOP_FIXED_AREA; uint16_t yArea = 320 - TOP_FIXED_AREA - BOT_FIXED_AREA; uint16_t yDraw = 320 - BOT_FIXED_AREA - TEXT_HEIGHT; byte pos[42]; uint16_t xPos = 0; void setup() { Serial.begin(115200); randomSeed(analogRead(A0)); tft.init(); tft.setRotation(0); tft.fillScreen(ILI9341_BLACK); setupScrollArea(TOP_FIXED_AREA, BOT_FIXED_AREA); } void loop(void) { // First fill the screen with random streaks of charactersfor (int j = 0; j < 600; j += TEXT_HEIGHT) { for (int i = 0; i < 40; i++) { if (pos[i] > 20) pos[i] -= 3; // Rapid fade initially brightness valuesif (pos[i] > 0) pos[i] -= 1; // Slow fade laterif ((random(20) == 1) && (j<400)) pos[i] = 63; // ~1 in 20 probability of a new character tft.setTextColor(pos[i] << 5, ILI9341_BLACK); // Set the green character brightnessif (pos[i] == 63) tft.setTextColor(ILI9341_WHITE, ILI9341_BLACK); // Draw white character xPos += tft.drawChar(random(32, 128), xPos, yDraw, 1); // Draw the character } yDraw = scroll_slow(TEXT_HEIGHT, 14); // Scroll, 14ms per pixel line xPos = 0; } //tft.setRotation(2);//tft.setTextColor(63 << 5, ILI9341_BLACK);//tft.drawCentreString("MATRIX",120,60,4);//tft.setRotation(0); // Now scroll smoothly foreverwhile (1) {yield(); yDraw = scroll_slow(320,5); }// Scroll 320 lines, 5ms per line } void setupScrollArea(uint16_t TFA, uint16_t BFA) { tft.writecommand(ILI9341_VSCRDEF); // Vertical scroll definition tft.writedata(TFA >> 8); tft.writedata(TFA); tft.writedata((320 - TFA - BFA) >> 8); tft.writedata(320 - TFA - BFA); tft.writedata(BFA >> 8); tft.writedata(BFA); } int scroll_slow(int lines, int wait) { int yTemp = yStart; for (int i = 0; i < lines; i++) { yStart++; if (yStart == 320 - BOT_FIXED_AREA) yStart = TOP_FIXED_AREA; scrollAddress(yStart); delay(wait); } return yTemp; } void scrollAddress(uint16_t VSP) { tft.writecommand(ILI9341_VSCRSADD); // Vertical scrolling start address tft.writedata(VSP >> 8); tft.writedata(VSP); }
Digital Clock
Next, we use the Digital_Clock Sketch to display real-time which was taken by the MCU from the computer before uploading.
If we reset or unplug the device and restart it from an external source, time will reset.
/* An example digital clock using a TFT LCD screen to show the time. Demonstrates use of the font printing routines. (Time updates but date does not.) It uses the time of compile/upload to set the time For a more accurate clock, it would be better to use the RTClib library. But this is just a demo... Make sure all the display driver and pin comnenctions are correct by editting the User_Setup.h file in the TFT_eSPI library folder. ######################################################################### ###### DON'T FORGET TO UPDATE THE User_Setup.h FILE IN THE LIBRARY ###### ######################################################################### Based on clock sketch by Gilchrist 6/2/2014 1.0 A few colour codes: code color 0x0000 Black 0xFFFF White 0xBDF7 Light Gray 0x7BEF Dark Gray 0xF800 Red 0xFFE0 Yellow 0xFBE0 Orange 0x79E0 Brown 0x7E0 Green 0x7FF Cyan 0x1F Blue 0xF81F Pink */ #include <TFT_eSPI.h> // Hardware-specific library #include <SPI.h> #define TFT_GREY 0x5AEB TFT_eSPI tft = TFT_eSPI(); // Invoke custom library uint32_t targetTime = 0; // for next 1 second timeout static uint8_t conv2d(const char* p); // Forward declaration needed for IDE 1.6.x uint8_t hh = conv2d(__TIME__), mm = conv2d(__TIME__ + 3), ss = conv2d(__TIME__ + 6); // Get H, M, S from compile time byte omm = 99, oss = 99; byte xcolon = 0, xsecs = 0; unsigned int colour = 0; void setup(void) { //Serial.begin(115200); tft.init(); tft.setRotation(1); tft.fillScreen(TFT_BLACK); tft.setTextSize(1); tft.setTextColor(TFT_YELLOW, TFT_BLACK); targetTime = millis() + 1000; } void loop() { if (targetTime < millis()) { // Set next update for 1 second later targetTime = millis() + 1000; // Adjust the time values by adding 1 second ss++; // Advance secondif (ss == 60) { // Check for roll-over ss = 0; // Reset seconds to zero omm = mm; // Save last minute time for display update mm++; // Advance minuteif (mm > 59) { // Check for roll-over mm = 0; hh++; // Advance hourif (hh > 23) { // Check for 24hr roll-over (could roll-over on 13) hh = 0; // 0 for 24 hour clock, set to 1 for 12 hour clock } } } // Update digital timeint xpos = 0; int ypos = 85; // Top left corner ot clock text, about half way downint ysecs = ypos + 24; if (omm != mm) { // Redraw hours and minutes time every minute omm = mm; // Draw hours and minutesif (hh < 10) xpos += tft.drawChar('0', xpos, ypos, 8); // Add hours leading zero for 24 hr clock xpos += tft.drawNumber(hh, xpos, ypos, 8); // Draw hours xcolon = xpos; // Save colon coord for later to flash on/off later xpos += tft.drawChar(':', xpos, ypos - 8, 8); if (mm < 10) xpos += tft.drawChar('0', xpos, ypos, 8); // Add minutes leading zero xpos += tft.drawNumber(mm, xpos, ypos, 8); // Draw minutes xsecs = xpos; // Sae seconds 'x' position for later display updates } if (oss != ss) { // Redraw seconds time every second oss = ss; xpos = xsecs; if (ss % 2) { // Flash the colons on/off tft.setTextColor(0x39C4, TFT_BLACK); // Set colour to grey to dim colon tft.drawChar(':', xcolon, ypos - 8, 8); // Hour:minute colon xpos += tft.drawChar(':', xsecs, ysecs, 6); // Seconds colon tft.setTextColor(TFT_YELLOW, TFT_BLACK); // Set colour back to yellow } else { tft.drawChar(':', xcolon, ypos - 8, 8); // Hour:minute colon xpos += tft.drawChar(':', xsecs, ysecs, 6); // Seconds colon } //Draw secondsif (ss < 10) xpos += tft.drawChar('0', xpos, ysecs, 6); // Add leading zero tft.drawNumber(ss, xpos, ysecs, 6); // Draw seconds } } } // Function to extract numbers from compile time string static uint8_t conv2d(const char* p) { uint8_t v = 0; if ('0' <= *p && *p <= '9') v = *p - '0'; return 10 * v + *++p - '0'; }
Keypad 240x320
This is an interesting sketch, an interactive number pad sketch on which we can input any number and it will send that number to the serial monitor.
This Sketch utilizes the touch function of LCD Display.
/* The TFT_eSPI library incorporates an Adafruit_GFX compatible button handling class, this sketch is based on the Arduin-o-phone example. This example diplays a keypad where numbers can be entered and send to the Serial Monitor window. The sketch has been tested on the ESP8266 (which supports SPIFFS) The minimum screen size is 320 x 240 as that is the keypad size. */ // The SPIFFS (FLASH filing system) is used to hold touch screen // calibration data #include "FS.h" #include <SPI.h> #include <TFT_eSPI.h> // Hardware-specific library TFT_eSPI tft = TFT_eSPI(); // Invoke custom library // This is the file name used to store the calibration data // You can change this to create new calibration files. // The SPIFFS file name must start with "/". #define CALIBRATION_FILE "/TouchCalData1" // Set REPEAT_CAL to true instead of false to run calibration // again, otherwise it will only be done once. // Repeat calibration if you change the screen rotation. #define REPEAT_CAL false // Keypad start position, key sizes and spacing #define KEY_X 40 // Centre of key #define KEY_Y 96 #define KEY_W 62 // Width and height #define KEY_H 30 #define KEY_SPACING_X 18 // X and Y gap #define KEY_SPACING_Y 20 #define KEY_TEXTSIZE 1 // Font size multiplier // Using two fonts since numbers are nice when bold #define LABEL1_FONT &FreeSansOblique12pt7b // Key label font 1 #define LABEL2_FONT &FreeSansBold12pt7b // Key label font 2 // Numeric display box size and location #define DISP_X 1 #define DISP_Y 10 #define DISP_W 238 #define DISP_H 50 #define DISP_TSIZE 3 #define DISP_TCOLOR TFT_CYAN // Number length, buffer for storing it and character index #define NUM_LEN 12 char numberBuffer[NUM_LEN + 1] = ""; uint8_t numberIndex = 0; // We have a status line for messages #define STATUS_X 120 // Centred on this #define STATUS_Y 65 // Create 15 keys for the keypad char keyLabel[15][5] = {"New", "Del", "Send", "1", "2", "3", "4", "5", "6", "7", "8", "9", ".", "0", "#" }; uint16_t keyColor[15] = {TFT_RED, TFT_DARKGREY, TFT_DARKGREEN, TFT_BLUE, TFT_BLUE, TFT_BLUE, TFT_BLUE, TFT_BLUE, TFT_BLUE, TFT_BLUE, TFT_BLUE, TFT_BLUE, TFT_BLUE, TFT_BLUE, TFT_BLUE }; // Invoke the TFT_eSPI button class and create all the button objects TFT_eSPI_Button key[15]; //------------------------------------------------------------------------------------------ void setup() { // Use serial port Serial.begin(9600); // Initialise the TFT screen tft.init(); // Set the rotation before we calibrate tft.setRotation(0); // Calibrate the touch screen and retrieve the scaling factors touch_calibrate(); // Clear the screen tft.fillScreen(TFT_BLACK); // Draw keypad background tft.fillRect(0, 0, 240, 320, TFT_DARKGREY); // Draw number display area and frame tft.fillRect(DISP_X, DISP_Y, DISP_W, DISP_H, TFT_BLACK); tft.drawRect(DISP_X, DISP_Y, DISP_W, DISP_H, TFT_WHITE); // Draw keypad drawKeypad(); } //------------------------------------------------------------------------------------------ void loop(void) { uint16_t t_x = 0, t_y = 0; // To store the touch coordinates // Pressed will be set true is there is a valid touch on the screen boolean pressed = tft.getTouch(&t_x, &t_y); // / Check if any key coordinate boxes contain the touch coordinatesfor (uint8_t b = 0; b < 15; b++) { if (pressed && key[b].contains(t_x, t_y)) { key[b].press(true); // tell the button it is pressed } else { key[b].press(false); // tell the button it is NOT pressed } } // Check if any key has changed statefor (uint8_t b = 0; b < 15; b++) { if (b < 3) tft.setFreeFont(LABEL1_FONT); else tft.setFreeFont(LABEL2_FONT); if (key[b].justReleased()) key[b].drawButton(); // draw normal if (key[b].justPressed()) { key[b].drawButton(true); // draw invert // if a numberpad button, append the relevant # to the numberBufferif (b >= 3) { if (numberIndex < NUM_LEN) { numberBuffer[numberIndex] = keyLabel[b][0]; numberIndex++; numberBuffer[numberIndex] = 0; // zero terminate } status(""); // Clear the old status } // Del button, so delete last charif (b == 1) { numberBuffer[numberIndex] = 0; if (numberIndex > 0) { numberIndex--; numberBuffer[numberIndex] = 0;//' '; } status(""); // Clear the old status } if (b == 2) { status("Sent value to serial port"); Serial.println(numberBuffer); } // we dont really check that the text field makes sense// just try to callif (b == 0) { status("Value cleared"); numberIndex = 0; // Reset index to 0 numberBuffer[numberIndex] = 0; // Place null in buffer } // Update the number display field tft.setTextDatum(TL_DATUM); // Use top left corner as text coord datum tft.setFreeFont(&FreeSans18pt7b); // Choose a nicefont that fits box tft.setTextColor(DISP_TCOLOR); // Set the font colour // Draw the string, the value returned is the width in pixelsint xwidth = tft.drawString(numberBuffer, DISP_X + 4, DISP_Y + 12); // Now cover up the rest of the line up by drawing a black rectangle. No flicker this way// but it will not work with italic or oblique fonts due to character overlap. tft.fillRect(DISP_X + 4 + xwidth, DISP_Y + 1, DISP_W - xwidth - 5, DISP_H - 2, TFT_BLACK); delay(10); // UI debouncing } } } //------------------------------------------------------------------------------------------ void drawKeypad() { // Draw the keysfor (uint8_t row = 0; row < 5; row++) { for (uint8_t col = 0; col < 3; col++) { uint8_t b = col + row * 3; if (b < 3) tft.setFreeFont(LABEL1_FONT); else tft.setFreeFont(LABEL2_FONT); key[b].initButton(&tft, KEY_X + col * (KEY_W + KEY_SPACING_X), KEY_Y + row * (KEY_H + KEY_SPACING_Y), // x, y, w, h, outline, fill, text KEY_W, KEY_H, TFT_WHITE, keyColor[b], TFT_WHITE, keyLabel[b], KEY_TEXTSIZE); key[b].drawButton(); } } } //------------------------------------------------------------------------------------------ void touch_calibrate() { uint16_t calData[5]; uint8_t calDataOK = 0; // check file system existsif (!SPIFFS.begin()) { Serial.println("Formating file system"); SPIFFS.format(); SPIFFS.begin(); } // check if calibration file exists and size is correctif (SPIFFS.exists(CALIBRATION_FILE)) { if (REPEAT_CAL) { // Delete if we want to re-calibrate SPIFFS.remove(CALIBRATION_FILE); } else { File f = SPIFFS.open(CALIBRATION_FILE, "r"); if (f) { if (f.readBytes((char *)calData, 14) == 14) calDataOK = 1; f.close(); } } } if (calDataOK && !REPEAT_CAL) { // calibration data valid tft.setTouch(calData); } else { // data not valid so recalibrate tft.fillScreen(TFT_BLACK); tft.setCursor(20, 0); tft.setTextFont(2); tft.setTextSize(1); tft.setTextColor(TFT_WHITE, TFT_BLACK); tft.println("Touch corners as indicated"); tft.setTextFont(1); tft.println(); if (REPEAT_CAL) { tft.setTextColor(TFT_RED, TFT_BLACK); tft.println("Set REPEAT_CAL to false to stop this running again!"); } tft.calibrateTouch(calData, TFT_MAGENTA, TFT_BLACK, 15); tft.setTextColor(TFT_GREEN, TFT_BLACK); tft.println("Calibration complete!"); // store data File f = SPIFFS.open(CALIBRATION_FILE, "w"); if (f) { f.write((const unsigned char *)calData, 14); f.close(); } } } //------------------------------------------------------------------------------------------ // Print something in the mini status bar void status(const char *msg) { tft.setTextPadding(240); //tft.setCursor(STATUS_X, STATUS_Y); tft.setTextColor(TFT_WHITE, TFT_DARKGREY); tft.setTextFont(0); tft.setTextDatum(TC_DATUM); tft.setTextSize(1); tft.drawString(msg, STATUS_X, STATUS_Y); } //------------------------------------------------------------------------------------------
ON-OFF Button
Next is the ON-OFF Button Sketch that I modified so that when the button is switched, the state of the LED can be controlled.
// Example of drawing a graphical "switch" and using // the touch screen to change it's state. // This sketch does not use the libraries button drawing // and handling functions. // Based on Adafruit_GFX library onoffbutton example. // Touch handling for XPT2046 based screens is handled by // the TFT_eSPI library. // Calibration data is stored in SPIFFS so we need to include it #include "FS.h" #include <SPI.h> #include <TFT_eSPI.h> // Hardware-specific library TFT_eSPI tft = TFT_eSPI(); // Invoke custom library // This is the file name used to store the touch coordinate // calibration data. Cahnge the name to start a new calibration. #define CALIBRATION_FILE "/TouchCalData3" // Set REPEAT_CAL to true instead of false to run calibration // again, otherwise it will only be done once. // Repeat calibration if you change the screen rotation. #define REPEAT_CAL false boolean SwitchOn = false; // Comment out to stop drawing black spots #define BLACK_SPOT // Switch position and size #define FRAME_X 100 #define FRAME_Y 64 #define FRAME_W 120 #define FRAME_H 50 // Red zone size #define REDBUTTON_X FRAME_X #define REDBUTTON_Y FRAME_Y #define REDBUTTON_W (FRAME_W/2) #define REDBUTTON_H FRAME_H // Green zone size #define GREENBUTTON_X (REDBUTTON_X + REDBUTTON_W) #define GREENBUTTON_Y FRAME_Y #define GREENBUTTON_W (FRAME_W/2) #define GREENBUTTON_H FRAME_H //------------------------------------------------------------------------------------------ //------------------------------------------------------------------------------------------ void setup(void) { Serial.begin(9600); tft.init(); // Set the rotation before we calibrate tft.setRotation(1); // call screen calibration touch_calibrate(); // clear screen tft.fillScreen(TFT_BLUE); pinMode(2, OUTPUT); // Draw button (this example does not use library Button class) redBtn(); } //------------------------------------------------------------------------------------------ //------------------------------------------------------------------------------------------ void loop() { uint16_t x, y; // See if there's any touch data for usif (tft.getTouch(&x, &y)) { // Draw a block spot to show where touch was calculated to be#ifdef BLACK_SPOT tft.fillCircle(x, y, 2, TFT_BLACK); #endif if (SwitchOn) { if ((x > REDBUTTON_X) && (x < (REDBUTTON_X + REDBUTTON_W))) { if ((y > REDBUTTON_Y) && (y <= (REDBUTTON_Y + REDBUTTON_H))) { Serial.println("Red btn hit"); digitalWrite(2,false); redBtn(); } } } else //Record is off (SwitchOn == false) { if ((x > GREENBUTTON_X) && (x < (GREENBUTTON_X + GREENBUTTON_W))) { if ((y > GREENBUTTON_Y) && (y <= (GREENBUTTON_Y + GREENBUTTON_H))) { Serial.println("Green btn hit"); digitalWrite(2,true); greenBtn(); } } } Serial.println(SwitchOn); } } //------------------------------------------------------------------------------------------ void touch_calibrate() { uint16_t calData[5]; uint8_t calDataOK = 0; // check file system existsif (!SPIFFS.begin()) { Serial.println("Formating file system"); SPIFFS.format(); SPIFFS.begin(); } // check if calibration file exists and size is correctif (SPIFFS.exists(CALIBRATION_FILE)) { if (REPEAT_CAL) { // Delete if we want to re-calibrate SPIFFS.remove(CALIBRATION_FILE); } else { File f = SPIFFS.open(CALIBRATION_FILE, "r"); if (f) { if (f.readBytes((char *)calData, 14) == 14) calDataOK = 1; f.close(); } } } if (calDataOK && !REPEAT_CAL) { // calibration data valid tft.setTouch(calData); } else { // data not valid so recalibrate tft.fillScreen(TFT_BLACK); tft.setCursor(20, 0); tft.setTextFont(2); tft.setTextSize(1); tft.setTextColor(TFT_WHITE, TFT_BLACK); tft.println("Touch corners as indicated"); tft.setTextFont(1); tft.println(); if (REPEAT_CAL) { tft.setTextColor(TFT_RED, TFT_BLACK); tft.println("Set REPEAT_CAL to false to stop this running again!"); } tft.calibrateTouch(calData, TFT_MAGENTA, TFT_BLACK, 15); tft.setTextColor(TFT_GREEN, TFT_BLACK); tft.println("Calibration complete!"); // store data File f = SPIFFS.open(CALIBRATION_FILE, "w"); if (f) { f.write((const unsigned char *)calData, 14); f.close(); } } } void drawFrame() { tft.drawRect(FRAME_X, FRAME_Y, FRAME_W, FRAME_H, TFT_BLACK); } // Draw a red button void redBtn() { tft.fillRect(REDBUTTON_X, REDBUTTON_Y, REDBUTTON_W, REDBUTTON_H, TFT_RED); tft.fillRect(GREENBUTTON_X, GREENBUTTON_Y, GREENBUTTON_W, GREENBUTTON_H, TFT_DARKGREY); drawFrame(); tft.setTextColor(TFT_WHITE); tft.setTextSize(2); tft.setTextDatum(MC_DATUM); tft.drawString("ON", GREENBUTTON_X + (GREENBUTTON_W / 2), GREENBUTTON_Y + (GREENBUTTON_H / 2)); SwitchOn = false; } // Draw a green button void greenBtn() { tft.fillRect(GREENBUTTON_X, GREENBUTTON_Y, GREENBUTTON_W, GREENBUTTON_H, TFT_GREEN); tft.fillRect(REDBUTTON_X, REDBUTTON_Y, REDBUTTON_W, REDBUTTON_H, TFT_DARKGREY); drawFrame(); tft.setTextColor(TFT_WHITE); tft.setTextSize(2); tft.setTextDatum(MC_DATUM); tft.drawString("OFF", REDBUTTON_X + (REDBUTTON_W / 2) + 1, REDBUTTON_Y + (REDBUTTON_H / 2)); SwitchOn = true; }
Boing Ball
Here's a demanding sketch that uses the processing power of the ESP32 to its fullest, the Boing Ball Animation Sketch.
It contains an additional Header file that is included in the code section.
// 'Boing' ball demo // STM32F767 55MHz SPI 170 fps without DMA // STM32F767 55MHz SPI 227 fps with DMA // STM32F446 55MHz SPI 110 fps without DMA // STM32F446 55MHz SPI 187 fps with DMA // STM32F401 55MHz SPI 56 fps without DMA // STM32F401 55MHz SPI 120 fps with DMA // STM32F767 27MHz SPI 99 fps without DMA // STM32F767 27MHz SPI 120 fps with DMA // STM32F446 27MHz SPI 73 fps without DMA // STM32F446 27MHz SPI 97 fps with DMA // STM32F401 27MHz SPI 51 fps without DMA // STM32F401 27MHz SPI 90 fps with DMA // Blue Pill - 36MHz SPI *no* DMA 36 fps // Blue Pill - 36MHz SPI with DMA 67 fps // Blue Pill overclocked to 128MHz *no* DMA - 32MHz SPI 64 fps // Blue Pill overclocked to 128MHz with DMA - 32MHz SPI 116 fps // ESP32 - 8 bit parallel 110 fps (no DMA) // ESP32 - 40MHz SPI *no* DMA 93 fps // ESP32 - 40MHz SPI with DMA 112 fps #define SCREENWIDTH 320 #define SCREENHEIGHT 240 #include "graphic.h" #include <TFT_eSPI.h> // Hardware-specific library TFT_eSPI tft = TFT_eSPI(); // Invoke custom library #define BGCOLOR 0xAD75 #define GRIDCOLOR 0xA815 #define BGSHADOW 0x5285 #define GRIDSHADOW 0x600C #define RED 0xF800 #define WHITE 0xFFFF #define YBOTTOM 123 // Ball Y coord at bottom #define YBOUNCE -3.5 // Upward velocity on ball bounce // Ball coordinates are stored floating-point because screen refresh // is so quick, whole-pixel movements are just too fast! float ballx = 20.0, bally = YBOTTOM, // Current ball position ballvx = 0.8, ballvy = YBOUNCE, // Ball velocity ballframe = 3; // Ball animation frame # int balloldx = ballx, balloldy = bally; // Prior ball position // Working buffer for ball rendering...2 scanlines that alternate, // one is rendered while the other is transferred via DMA. uint16_t renderbuf[2][SCREENWIDTH]; uint16_t palette[16]; // Color table for ball rotation effect uint32_t startTime, frame = 0; // For frames-per-second estimate void setup() { Serial.begin(115200); // while(!Serial); tft.begin(); tft.setRotation(3); // Landscape orientation, USB at bottom right tft.setSwapBytes(false); // Draw initial framebuffer contents://tft.setBitmapColor(GRIDCOLOR, BGCOLOR); tft.fillScreen(BGCOLOR); tft.initDMA(); tft.drawBitmap(0, 0, (const uint8_t *)background, SCREENWIDTH, SCREENHEIGHT, GRIDCOLOR); startTime = millis(); } void loop() { balloldx = (int16_t)ballx; // Save prior position balloldy = (int16_t)bally; ballx += ballvx; // Update position bally += ballvy; ballvy += 0.06; // Update Y velocityif((ballx <= 15) || (ballx >= SCREENWIDTH - BALLWIDTH)) ballvx *= -1; // Left/right bounceif(bally >= YBOTTOM) { // Hit ground? bally = YBOTTOM; // Clip and ballvy = YBOUNCE; // bounce up } // Determine screen area to update. This is the bounds of the ball's// prior and current positions, so the old ball is fully erased and new// ball is fully drawn.int16_t minx, miny, maxx, maxy, width, height; // Determine bounds of prior and new positions minx = ballx; if(balloldx < minx) minx = balloldx; miny = bally; if(balloldy < miny) miny = balloldy; maxx = ballx + BALLWIDTH - 1; if((balloldx + BALLWIDTH - 1) > maxx) maxx = balloldx + BALLWIDTH - 1; maxy = bally + BALLHEIGHT - 1; if((balloldy + BALLHEIGHT - 1) > maxy) maxy = balloldy + BALLHEIGHT - 1; width = maxx - minx + 1; height = maxy - miny + 1; // Ball animation frame # is incremented opposite the ball's X velocity ballframe -= ballvx * 0.5; if(ballframe < 0) ballframe += 14; // Constrain from 0 to 13else if(ballframe >= 14) ballframe -= 14; // Set 7 palette entries to white, 7 to red, based on frame number.// This makes the ball spinfor(uint8_t i=0; i<14; i++) { palette[i+2] = ((((int)ballframe + i) % 14) < 7) ? WHITE : RED; // Palette entries 0 and 1 aren't used (clear and shadow, respectively) } // Only the changed rectangle is drawn into the 'renderbuf' array...uint16_t c, *destPtr; int16_t bx = minx - (int)ballx, // X relative to ball bitmap (can be negative) by = miny - (int)bally, // Y relative to ball bitmap (can be negative) bgx = minx, // X relative to background bitmap (>= 0) bgy = miny, // Y relative to background bitmap (>= 0) x, y, bx1, bgx1; // Loop counters and working varsuint8_t p; // 'packed' value of 2 ball pixelsint8_t bufIdx = 0; // Start SPI transaction and drop TFT_CS - avoids transaction overhead in loop tft.startWrite(); // Set window area to pour pixels into tft.setAddrWindow(minx, miny, width, height); // Draw line by line loopfor(y=0; y<height; y++) { // For each row... destPtr = &renderbuf[bufIdx][0]; bx1 = bx; // Need to keep the original bx and bgx values, bgx1 = bgx; // so copies of them are made here (and changed in loop below)for(x=0; x<width; x++) { if((bx1 >= 0) && (bx1 < BALLWIDTH) && // Is current pixel row/column (by >= 0) && (by < BALLHEIGHT)) { // inside the ball bitmap area?// Yes, do ball compositing math... p = ball[by][bx1 / 2]; // Get packed value (2 pixels) c = (bx1 & 1) ? (p & 0xF) : (p >> 4); // Unpack high or low nybbleif(c == 0) { // Outside ball - just draw grid c = background[bgy][bgx1 / 8] & (0x80 >> (bgx1 & 7)) ? GRIDCOLOR : BGCOLOR; } else if(c > 1) { // In ball area... c = palette[c]; } else { // In shadow area... c = background[bgy][bgx1 / 8] & (0x80 >> (bgx1 & 7)) ? GRIDSHADOW : BGSHADOW; } } else { // Outside ball bitmap, just draw background bitmap... c = background[bgy][bgx1 / 8] & (0x80 >> (bgx1 & 7)) ? GRIDCOLOR : BGCOLOR; } *destPtr++ = c<<8 | c>>8; // Store pixel color bx1++; // Increment bitmap position counters (X axis) bgx1++; } tft.pushPixelsDMA(&renderbuf[bufIdx][0], width); // Push line to screen // Push line to screen (swap bytes false for STM/ESP32)//tft.pushPixels(&renderbuf[bufIdx][0], width); bufIdx = 1 - bufIdx; by++; // Increment bitmap position counters (Y axis) bgy++; } //if (random(100) == 1) delay(2000); tft.endWrite(); //delay(5);// Show approximate frame rateif(!(++frame & 255)) { // Every 256 frames...uint32_t elapsed = (millis() - startTime) / 1000; // Secondsif(elapsed) { Serial.print(frame / elapsed); Serial.println(" fps"); } } }
Conclusion
The display works with the ESP32 through the carrier board.
Making a display-driven project or even preparing sample code for this display is now much easier because we are using a proper dedicated setup for programming the display.
For now, this project is complete, no further improvements are required or needed at the moment.
As for its use, I'm preparing a project that includes running animations on this display so I'll be using the carrier board as a base for the next project.
This is it for today folks, if you have any problem regarding this project, leave a comment.
Special thanks to PCBWAY for supporting this project, you guys can check them out for getting great PCB Service for less cost.
Stay tuned for the next project!
Peace
