Béla The Developer Guy
HUNGARY • + Follow
Components
|
|
5mm LED |
x 48 | |
|
|
1k resistor |
x 24 | |
|
232-MKEYSTONE ELECTRONICS
|
x 1 |
Description
LED Cockade - LED kokárda
Mivel 99.9%-ban magyar látogatók lesznek itt, kezdjük magyarul.
Összeszerelési útmutató
Természetesen legyen egy jó páka, ón, csípőfogó, és forrasztáshoz szükséges általános szerszámok kéznél.
Beültetési sorrend:
- ellenállások, "hátulról" - így viselve csak a ledek látszanak, és igen kellemetlen a ledek közül kicsípni a hosszú lábakat (nem lehetetlen)
- elemtartó
- ledek
Nagyjából két óra összeszerelni.
Assembly instructions
This badge requires around 2 hours to assemble.
- start with the resistors
- continue with the battery connector
- finish with the LEDs

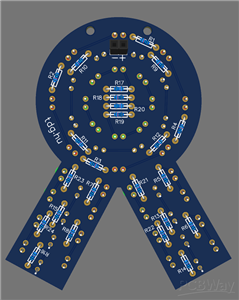

Schematic and Layout
Schematic - kapcsolási rajz
Schematic_kokarda-TH_2025-03-15.pdf
Mar 05,2025
213 views
end-flag
LED Cockade - LED kokárda
A LED cockade - if your event needs one!
213
1
0
Published: Mar 05,2025
Download Gerber file 5
PCBWay Donate 10% cost To Author
File Last Updated: 2025/03/15 (GMT+8)
File update record
2025-03-1518:52:22
Gerber file is updated.
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
