Les Paul ZMK-Hero

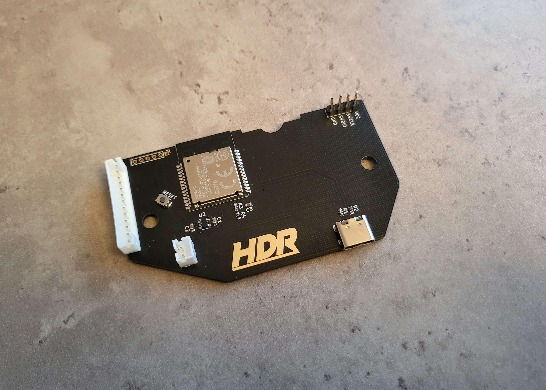

This is a replacement bluetooth enabled mainboard for Les Paul PS3 Guitar Hero controllers with a 13 pin connector on the mainboard
More info on github
May 23,2023
1,216 views
end-flag
Les Paul ZMK-Hero
2 Layers PCB 46 x 80.5 mm FR-4, 1.6 mm, 1, Immersion gold, Green Solder Mask, White silkscreen
A Replacement Bluetooth board for PS3 Les Paul Guitars (13 pin mainboard only)
1216
0
0
Published: May 23,2023
Purchase
Donation Received ($)
PCBWay Donate 10% cost To Author
