Panasonic Q Rear Shield | English FlippyDrive Version
A drop-in replacement for your Panasonic Q Backplate made from 1018 Steel.

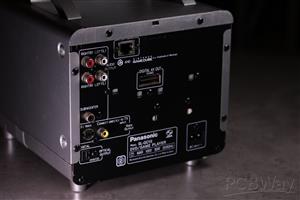

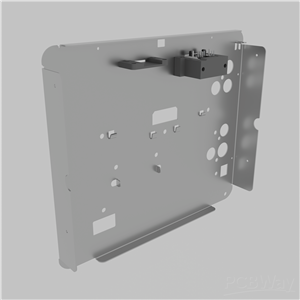

This is the English FlippyDrive version, unlike the one your console came with, this one has a cutout for the FlippyDrive Ethernet and a cutout for a Micro SD Card extender (High resolution render)
Ordering Details:
There are a few options that need to be selected when ordering.
Material: Mild Steel
Thickness: 0.8mm
Surface finish: Powder Coat - High Gloss PANTONE Black C (Can be substituted for a color/finish of your choice)
Threads and Tapped Holes: Yes
Part Marking: Silkscreen - White (Or a color of your choice)
Product Desc: DIY Entertainment >> Gaming Enclosure
Notes:
The estimated cost is higher than the actual quote, for a single piece expect around $120-$130 USD
A group buy might reduce the per-unit cost, if anyone wants to do that consider joining my discord https://discord.gg/TUeFmMXfsh
Please consider supporting me on ko-fi, i usually don't sell stuff, so this helps me offset the cost of prototyping
CAD-Custom parts and enclosures
C-H231W82150A_Panasonic Q Rear Shield English FlippyDrive v28
Panasonic Q Rear Shield English FlippyDrive v32.step
Technical Drawing v28.pdf
Silkscreen Placement.svg
Silkscreen.svg
