  • Pins 5 and 6 on the motherboard, what voltages they have, I know that the others are 5v +12 and -12, but I don't know which pins 5-6 have. Might you help me?

    Edoardo kinmami 2024-07-26 03:46:19Reply

    Those are Power Good and Power On Reset clamped by zener diodes

    Engineer 2024-07-29 04:53:11Reply

    Thank you very much, I have a destroyed HX-20, the supply and the transformer are broken and I was thinking of replacing the supply with a 5v input and a converter always at -12 and +12 but I needed to know what those pins were.

    Reply

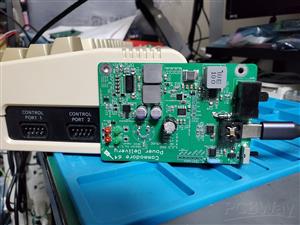

  • POW_IN connector can be reused from the original PSU
