Description
MonochromeVGA
MonochromeVGA is a product to enjoy the charm of those monochrome monitors of the time but in the current video systems, and more specifically in your PC monitor. Although it could be connected to any TV, monitor or video system that has VGA inputs.
Select green, amber or B&W as monochromatic color, among others. Change color to monochrome or vice versa easily.
https://hackaday.io/project/166041-monochromevga
Designed by spark2k06
Schematic and Layout
https://github.com/spark2k06/MonochromeVGA
https://github.com/spark2k06/MonochromeVGA
Sep 09,2021
2,088 views
end-flag
MonochromeVGA

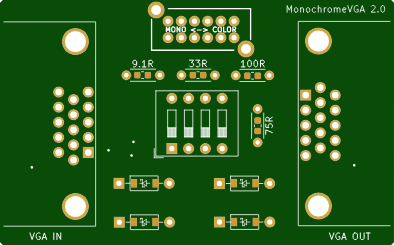

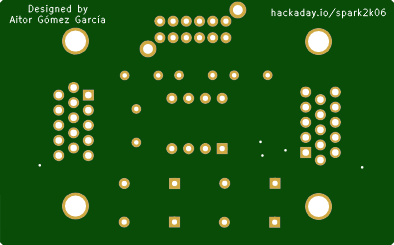

2 Layers PCB 37.1 x 59.7 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
2088
5
0
Published: Sep 09,2021
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
