NABU PC Prototyping PCB

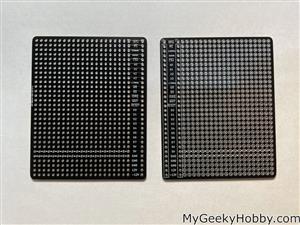

This is a prototyping PCB for NABU PC. Great way to speed up the prototyping of hardware interfaces. The PCB breaks out all the signals from NABU into a connector with labels for ease of connection.

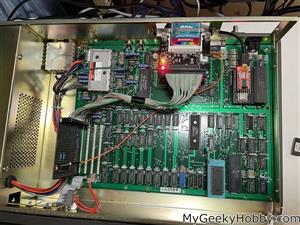

I used it to quickly wire up the CF adapter and run CP/M on the computer.
Code
GitHub Sources
https://github.com/Kris-Sekula/NABU/tree/main/ProtoPCB
Jan 01,2023
680 views
NABU PC Prototyping PCB
Simple prototyping PCB for NABU PC, breaks out all signals with labels on the PCB
