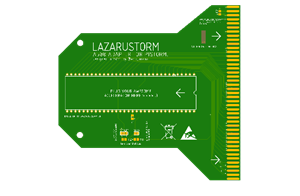

PISTORM for COMMODORE AMIGA (A 68000 CPU replacement)
captain-amygdala/pistorm is licensed under the
MIT License
Permissions
Commercial use
Modification
Distribution
Private use
pistorm by captain-amygdala
(A 68000 CPU replacement)
4 layers PCB
File name: PistormRevB_PCB_FAB.zip
Project information: The PiStorm itself is an adapter board intended to be paired with a Raspberry Pi Model 3A+. It goes in the DIP socket on and acts in place of the CPU, but functionality can be extended beyond simple CPU emulation.
IMPORTANT NOTE: Selling blank or complete PCBs or derivatives on eBay or elsewhere for excessive profit is frowned upon and may lead to forthcoming related projects being closed source.
