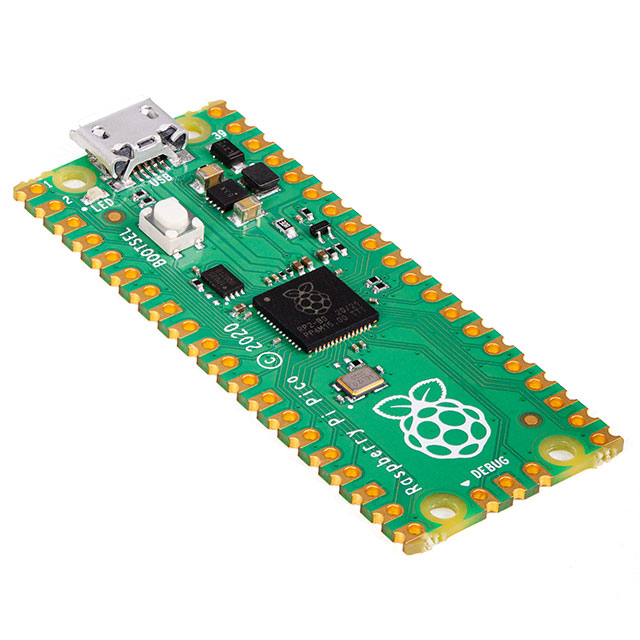

SC0915Raspberry Pi
|
x 1 | |
|
CPG135001S30 |
x 21 | |
|
PJ-320A |
x 1 |
![]() |
KiCADKicad
|
Piantor Keyboard (Left side)
* Non-flippable PCBs - Fewer ways to make mistakes when you install the controller breakout boards. Great for first time keyboard builders.
* Diodeless - A more robust build with fewer things to solder or break.
* RP2040 MCU - A low cost, powerful microcontroller with dual Arm Cortex-M0+ @ 133MHz, 264kB on-chip SRAM and an 2MB (up to 16MB, depending on the breakout board) off-chip external flash memory. You can enable a lot of features and layers. Never worry about the firmware size limit.
* Cantor layout - Ergonomic strong column staggering for short pinkies.
* Hybrid hotswap and soldered-in low profile choc switches - Experiment with different key switches with the hotswap sockets, or solder the key switches for a more stable build.
* Breakable pinky column - Easily convert the PCB from a 42-key to 36-key layout. You can break off the pinky column without specialized tools.
Notes for ordering:
The project includes two PCBs. You will need to order both left side and right side for a full build. The right side can be found at https://www.pcbway.com/project/shareproject/Piantor_Keyboard_Right_side_7c5b31eb.html
Piantor Keyboard (Left side)
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
