Description

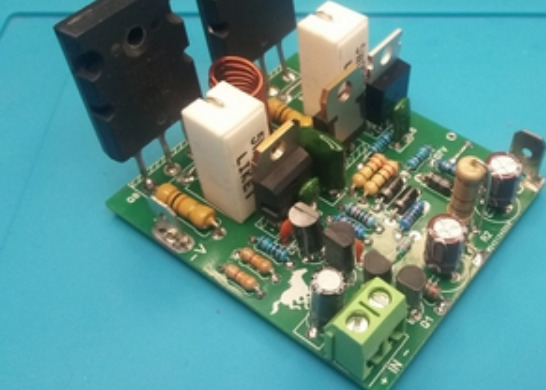

Quasi Complementary Amplifier
Hello, more stable, stable version of the 100 Watt Mono Semi-Complementary Amplifier, known in Colombia as ZENER. Its noise is very low, and it does not make an explosion sound when opened.
Even though I use SMPS as the power supply, there is no noise, hum etc. It was almost non-existent. With an 8 Ohm speaker, it can deliver RMS 100W power. With a 4 Ohm speaker, it can deliver RMS 130W.
Schematic and Layout
Oct 10,2023
1,059 views
end-flag
Quasi Complementary Amplifier
2 Layers PCB 52.1 x 60 mm FR-4, 1.2 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
