Grzegorz GienekP
POLAND • + Follow
Components
|
SST39SF040-70-4C-PHEMicrochip Technology
|
x 1 | |
|
|
ATF22V10C-7PXMicrochip
|
x 1 | |
|
|
100nFVishay / BC Components
|
x 1 | |
|
4610X-101-103LFBourns
|
x 1 |
Description
SXEGS22V10

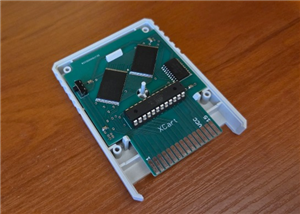

Switchable XEGS 512 KB cartridge for ATARI XL/XE
This bank-switched cartridge occupies 16 KB of address space between $8000 and $BFFF. The cartridge memory is divided into 64 banks, 8 KB each. The last bank is always mapped to $A000-$BFFF. Six lowest bits of a byte written to $D500-$D5FF select the bank mapped to $8000-$BFFF, bit 7 disables the cartridge.
Code
GitHub
https://github.com/GienekP/SXEGS22V10
Oct 23,2022
833 views
end-flag
SXEGS22V10
2 Layers PCB 54.8 x 66.7 mm FR-4, 1.6 mm, 1, Immersion gold, Green Solder Mask, White silkscreen
Switchable XEGS cartridge for ATARI XL/XE
833
3
2
Published: Oct 23,2022
Other files for Assembly
PCBWay Donate 10% cost To Author
File Last Updated: 2023/10/28 (GMT+8)
File update record
2023-10-2822:18:10
Other files for Assembly are updated.
2022-12-0422:16:09
Gerber file is updated.
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
