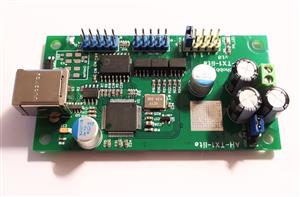

USB to I2S converter AH-TX1-lite-v1.0
- Up to 384kHz PCM sample rate
- DSD64, DSD128 and DSD256
- Full galvanic isolation from USB source (PC, Tablet, etc.)
- Slave I2S bus with Master MCLK (Master I2S optional)
More details: https://audiohobby.ru/articles/kachestvennyi-usb-i2s-audiointerfeis-ah-tx1-lite.html
Sep 09,2022
1,991 views
USB to I2S converter AH-TX1-lite-v1.0

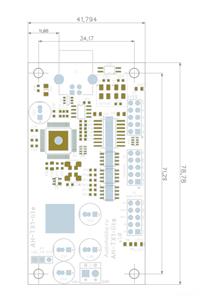

4 Layers PCB 78.8 x 41.8 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
