Veccy Controller

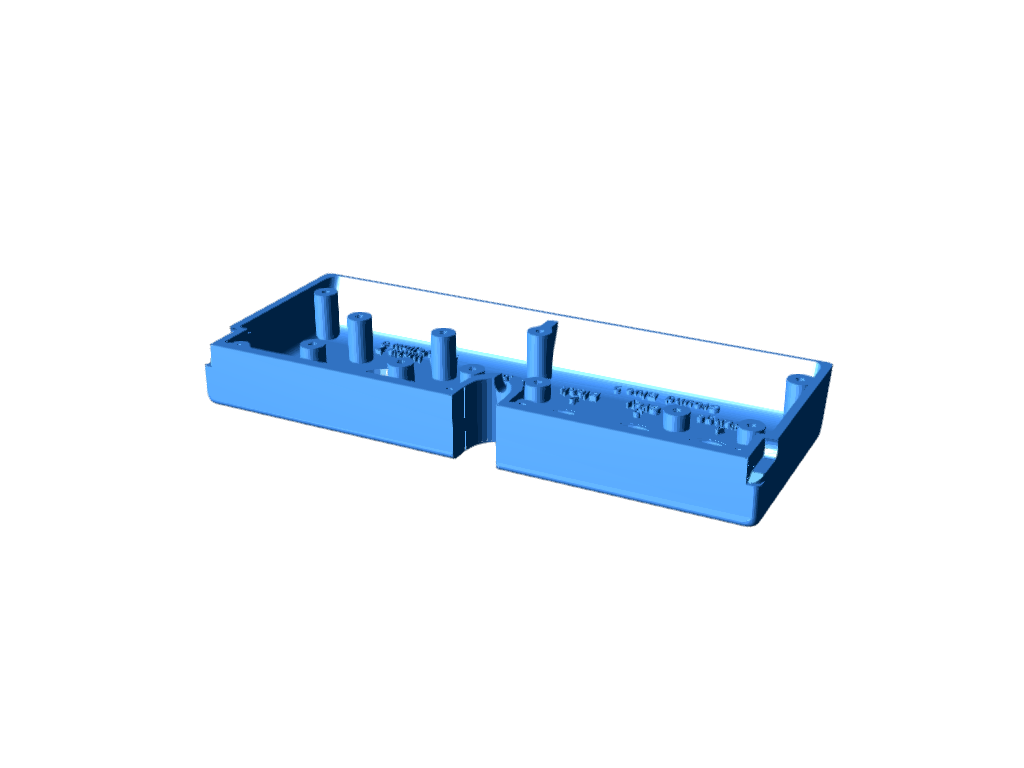

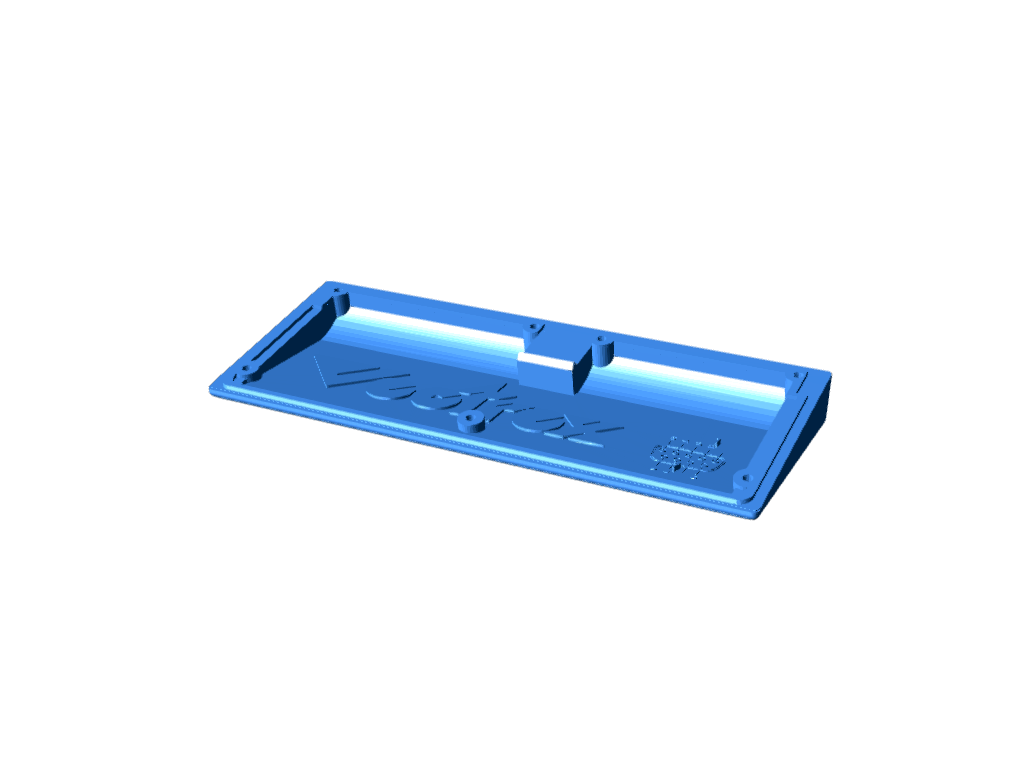

This remix is more friendly to print: I corrected the angle of the controller so it can be easily printed with smooth surface.

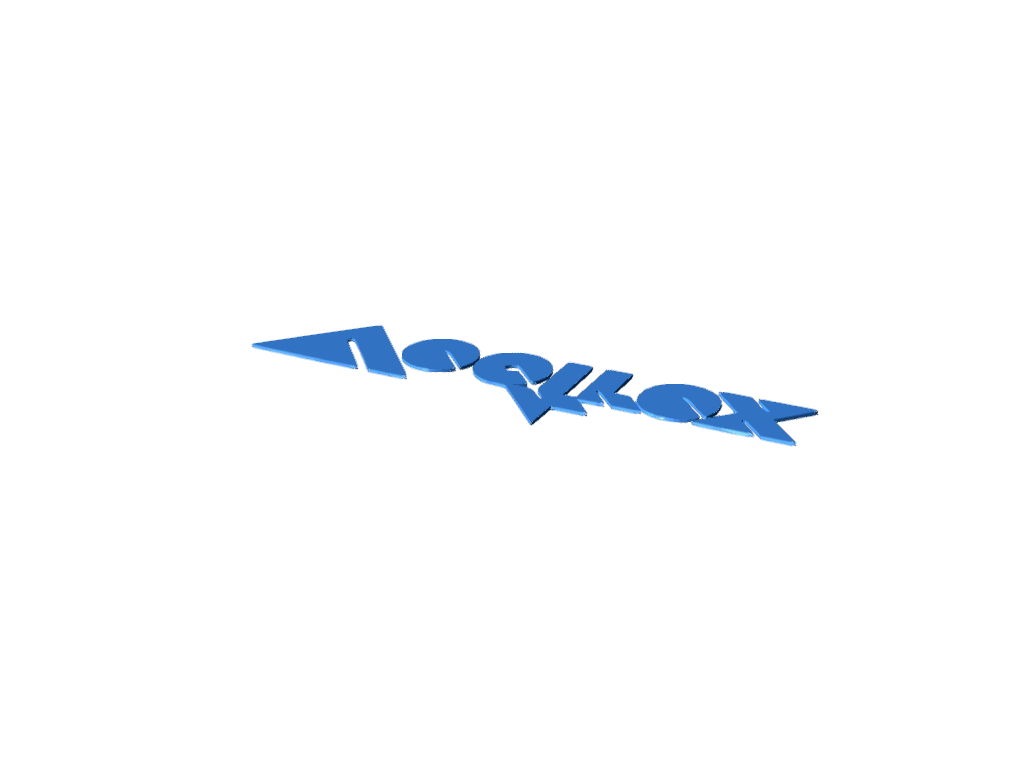

I included a decoration for the bottom if you have a multicolor printer like BambuLab.
The buttons used for the project can be found on Amazon: https://www.amazon.it/gp/product/B097PP9HPQ/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
I used a 10k ohm controller for original xbox and designed a custom pcb.
I included the fabrication file.
You need two 4.7K resistors and two 10K trimmers and the analog stick and a spare atari cable.
Calibrate the joystick with the trimmers and a test cart.
Veccy Controller
