Components
|
Samtec SMS-138-01-G-S - 1.27mm 1x38 female pin socket |
x 1 | |
|
RC0805FR-0747KL - resistor 47K 0805 |
x 1 | |
|
SST39SF020A-70-4C-WHE - Flash Memory 128Kx8 5v parallel sTSOP-32 |
x 1 |
Description

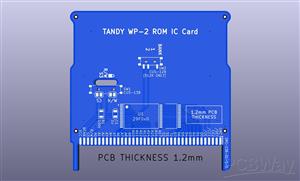

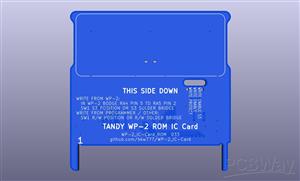

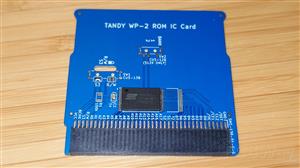

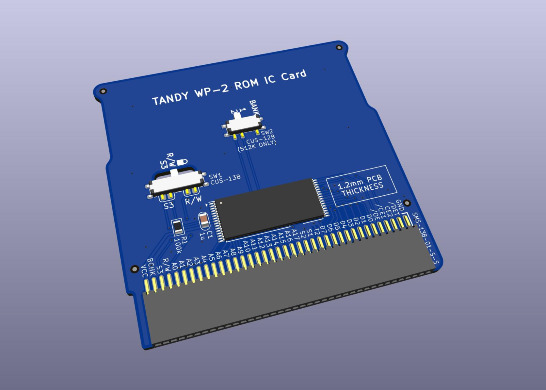

TANDY WP-2 ROM IC Card
MUST select 1.2mm PCB thickness at checkout.

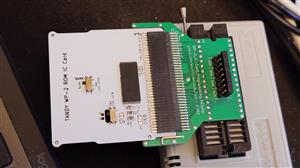

Use this adapter to program the rom:
https://www.pcbway.com/project/shareproject/WP_2_IC_Card_ROM_programming_adapter.html
NOTE: There are no known rom images to load onto this card at this time.
The WP-2 service manual contains enough info to possibly be able to write custom software which could read from a rom card.
CAD-Custom parts and enclosures
Nov 16,2020
951 views
TANDY WP-2 ROM IC Card
256K ROM IC Card for TANDY WP-2
951
1
0
Published: Nov 16,2020
Download Gerber file 4
Purchase
Donation Received ($)
PCBWay Donate 10% cost To Author
File Last Updated: 2024/04/20 (GMT+8)
File update record
2024-04-2005:40:50
CAD or technical drawing file is updated.
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Copy this HTML into your page to embed a link to order this shared project
Copy
Under the
Attribution-ShareAlike (CC BY-SA)
License.
