Components
|
AS6C1008-55STINAlliance Memory, Inc.
|
x 1 | |
|
MC74HC08ADTR2Gonsemi
|
x 1 | |
|
C0805C105J4REC7800KEMET
|
x 2 | |
|
PCN10EA-44PHirose
|
x 1 |
Description

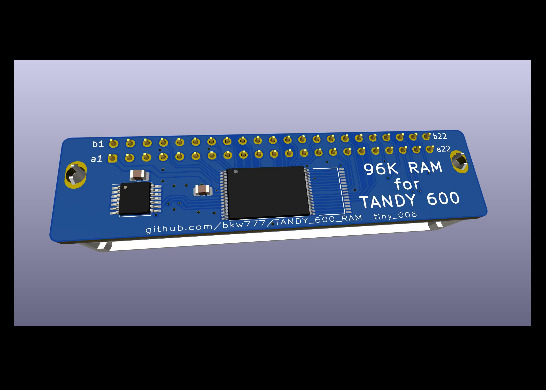

TANDY 600 RAM - TINY Version
Tiny version of 96K ram module for TANDY 600

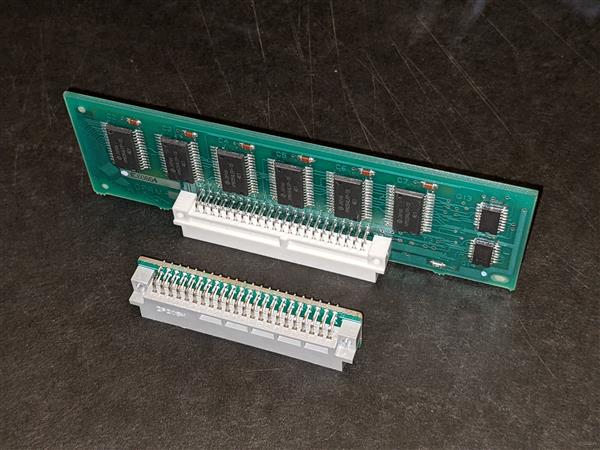

The larger card below is the original 96K ram card for comparison.
They have chips on both sides totalling 12 ram chips and 4 glue logic.

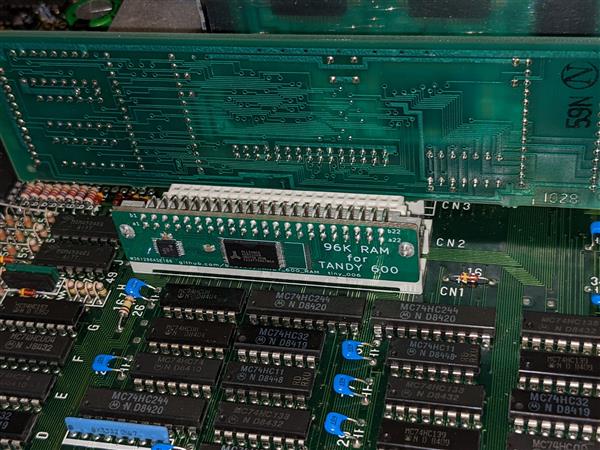

The new card is entirely within the footprint of the bus connector.
Schematic and Layout
github.com/bkw777/TANDY_600_RAM
Dec 22,2022
814 views
TANDY 600 RAM - TINY Version
TINY version of 96K RAM module for TANDY 600
814
0
0
Published: Dec 22,2022
