Description

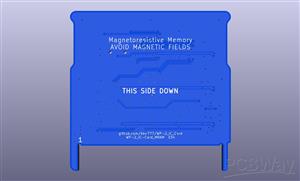

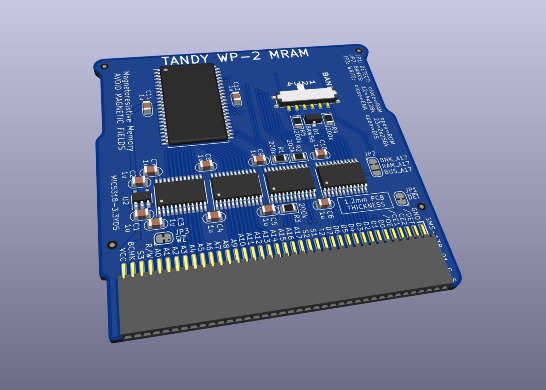

512k MRAM IC-Card for TANDY WP-2

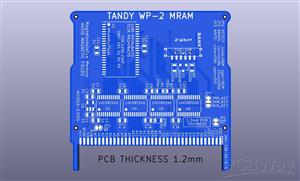

REQUIRES 1.2 mm PCB
Warning: The total cost for parts for this is around $100 USD

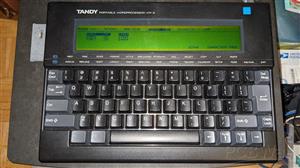

This is an "IC-Card" for TANDY WP-2.
It functions the same as a battery-backed 128K SRAM, except it provides 4 128K banks, and does not require a battery.
KiCAD source for schematic and pcb, BOM, and OpenSCAD source for 3d-printed cover in the github repo:
https://github.com/bkw777/WP-2_IC-Card

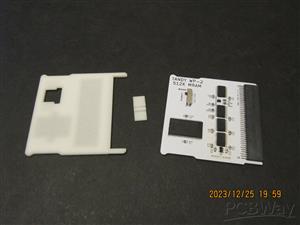

Attach the printable cover with adhesive transgfer tape such as https://www.amazon.com/LLP-Resistant-Crafting-Electronics-Transparent/dp/B07FQXRQNS
Schematic and Layout
https://github.com/bkw777/WP-2_IC-Card
CAD-Custom parts and enclosures

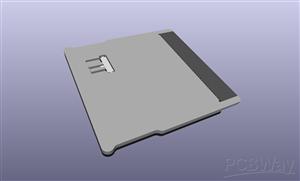

WP-2_IC-Card_Cover_MRAM_512_slider.stl
Mar 03,2023
1,122 views
end-flag
512k MRAM IC-Card for TANDY WP-2
4 x 128K non-volative M-RAM in a single IC-Card for TANDY WP-2, no battery needed.
