Description

WeMos D1 (esp8266) Ebyte LoRa shield (10Km) with HardwareSerial and 5V switch

HardwareSerial shield 5v version

After a while, I understand that to have a good range, I need to power the LoRa device with 5v, and I redò the shield like the photo.

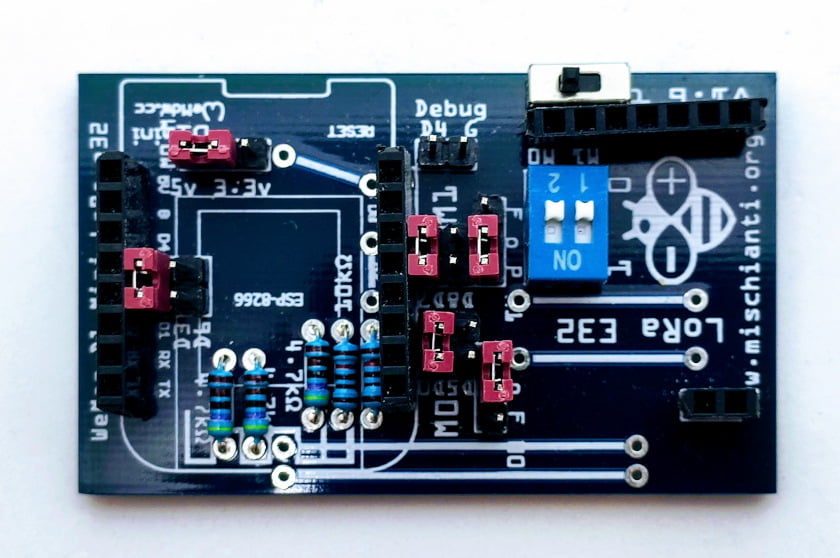

EByte LoRa Exx Wemos D1 shield PCB up with 5v 3v3 switch

The soldering steps are the same, but I remove the voltage regulator and add a switch from 3.3v of the WeMos voltage regulator to 5v USB power supply.

You can find dip switch on AliExpress

And here the final result.

Code

E22 Library (E32 also supported)

https://github.com/xreef/EByte_LoRa_E22_Series_Library

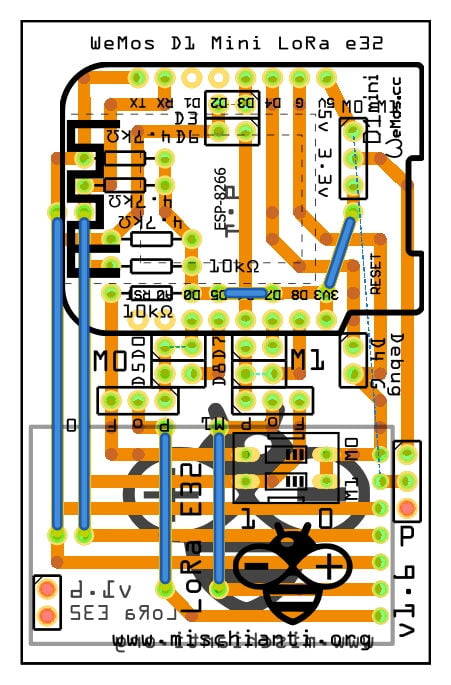

Schematic and Layout

Documentation url

https://www.mischianti.org/2022/02/24/wemos-d1-esp8266-hardwareserial-shield-for-ebyte-e32-e22-e220-lora-devices/

Feb 24,2022

3,248 views

WeMos D1 (esp8266) Ebyte LoRa shield (10Km) with HardwareSerial and 5V switch

3248

Published: Feb 24,2022
