richard LER
SPAIN • + Follow
Components
|
|
Battery contact with spring /36-5202-NDKeystone Electronics
|
x 3 | |
|
|
Battery contact no spring / 36-5240-NDKeystone Electronics
|
x 3 |
Tools, APP Software Used etc.
|
3D Printer (generic) |
|
|
Soldering Iron Wire Welding Lead Roll |
|
|
Soldering iron |
Description
1$ Short Tracer by Learn Electronics Repair Youtube channel
This is Learn Electronics Repair Youtube channels -1$ Short tracer
The case encloses 3 AA batteries and the PCB and 2x panel mount banana plug sockets
and some battery contacts
You can see the original version of the Short tracer on this video :
https://www.youtube.com/watch?v=P_2GGNr4q1s
And the UPDATED VERSION (which is the one available in this project) on this video
https://www.youtube.com/watch?v=0eixDdCpiO4
The case has a clip system that clips around your multimeter and makes it easier to do the measurements. You can then use 4 wire Kelvin probes with a standard Multimeter
The Short finder is extremely sensitive (20 microOhms) and very useful as demonstrated on the video. it can easily find a short circuit SMD capacitor in a row of adjacent capacitors millimeters apart. This is a great tool to have in your toolbox as a hobbyist and professional.
The case makes it easier to handle the short finder, you will also need a pair of Kelvin Probes
Schematic and Layout
Schematics for the PCB
Schematic.pdf
Pick and place file - EasyEDA
PickAndPlace_PCB_LER 1$ Short detector_2022-07-02.csv
CAD-Custom parts and enclosures
Case
Case.stl
Lid
Lid.stl
Clip
Back Clip.stl
Left clip
Left Clip.stl
Right Clip
RightClip.stl
Jun 18,2022
8,014 views
end-flag
1$ Short Tracer by Learn Electronics Repair Youtube channel
1$ Short Tracer PCB - by Learn Electronics Repair Channel on Youtube , Case Designed by Retro Upgrade Youtube channel
8014
30
13
Published: Jun 18,2022
Download Gerber file 159
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
File Last Updated: 2023/11/16 (GMT+8)
File update record
2023-11-1609:23:59
Centroid file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-point Touch, 32-bit LX7 Dual-core Processor
BUY NOW
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
- Comments(13)
- Likes(30)
More by richard LER
-
The Ominous Op Amp Tester : Universal Opamp tester SMD and Through Hole
Universal Op Amp Tester by Learn Electronics RepairFind the videos herecircuit designhttps://www.you...
-
Uncle Sweepy - The Low Cost Audio Sweep Generator and More - Learn Electronics Repair Sweep Gen Reinvented
Learn Electronics Repair Audio Sweep Generator With Sync aka Uncle Sweepy---------------------For Sc...
-
Multiload : 140W Electronics Load with PD support and Volt Amp Watts Meter - Daughter Board
Optional Display unit for the Multiload 140W variable electronic load.You can find the schematics, s...
-

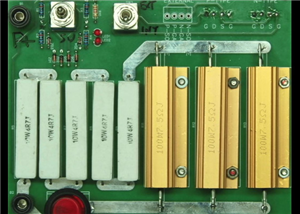

Multiload : 140W Electronics Load with PD support and Volt Amp Watts Meter
