555 Timer 12VDC Motor Speed Controller

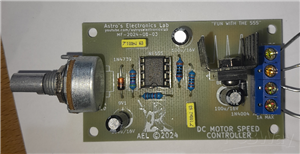

Using a 555 timer and PWM (Pulse-Width Modulation), by varying its duty-cycle, we can vary the speed of a DC motor by sending bursts of current to it. The 555 is configured as an astable square-wave oscillator, and RV1 (the 10k pot) is connected to the control voltage pin (pin 5). By varying the control voltage towards the positive supply rail will vary the duty-cycle and the frequency and drive the motor faster and eventually full speed. The PWM frequency is around 200Hz and varies with duty-cycle. Conversely, lowering the control voltage closer to 0V will slow the motor down until it eventually stops. On the schematic M1 (the motor) represents J2 on the PCB.

Link to the YouTube video about this project:

Schematic and Layout

Schematic


Download BOM(Bill of materials)

Sep 09,2024

118 views

555 Timer 12VDC Motor Speed Controller

1 Layers PCB 38.6 x 64.2 mm FR-4, 1.6 mm, 1, HASL with lead, Blue Solder Mask, White silkscreen

Using a 555 timer IC and varying the PWM duty cycle to control the speed of a 12VDC motor.
