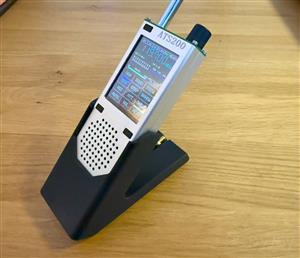

ATS Radio Desk Stand
A handy desk stand for the ATS range of handheld multiband radios
Suitable for the following models....
The design features a recessed channel to accommodate an external antenna jack and cable if plugged into the bottom of the radio. The stand has also been design to be stable even if the telescopic antenna is fully extended. That stand is also featured in the following ATS200 radio review video:
The desk stand can also be converted into a docking station by using hot glue to secure the antenna jack permanently in the right position. See the following video on how to do this:
You can either download the STL file and print the stand yourself or have PCBWay print it for you.
Note! that PCB Way will offer a number of shipping options. This makes big impact on the overall price, so choose with care.
If you choose to download and print it yourself, note that no supports are required.
Enjoy!
