Components

	ARDUINO UNO REV3	x 1
	10 ohm resistors Generic	x 6
	Mechanical switches Generic	x 6
	Pins Generic	x 20

Tools, APP Software Used etc.

	Soldering iron
	Soldering Iron Wire Welding Lead Roll

Description

Arduino UNO mechanic switches shield.

Building the Shield:

Materials:

6x 10 Ohm Resistors.

6x Mechanical keyboard switches.

1x Arduino UNO

20x Generic pins.

Steps:

1- Solder the resistors to the resistor sockets located on the sides of the shield

2- Solder the Switches to the sockets

3- Program the board.

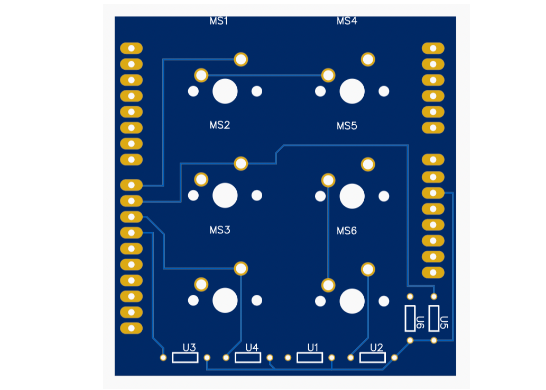

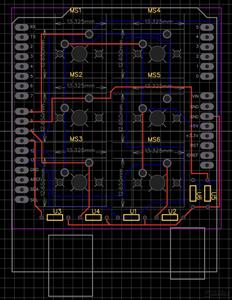

Schematic and Layout

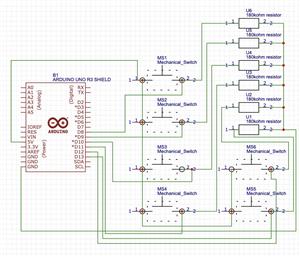

Schematic

Screen Shot 2022-08-08 at 08.39.13.png

Download Gerbers

Aug 08,2022

605 views

Arduino UNO mechanic switches shield.

Make a simple shield with buttons for hardware projects!

605

Published: Aug 08,2022

Download Gerber file 2

PCBWay Donate 10% cost To Author

Add to cart
