Components
|
ATMEGA4808-XUMicrochip Technology
|
x 1 | |
|
|
RFM95W-868S2RF Solutions
|
x 1 | |
|
TPL5010QDDCTQ1Texas Instruments
|
x 1 |
Tools, APP Software Used etc.
|
DiptraceDiptrace
|
|
|
arduino IDEArduino
|
Description
Arduino compatible LoRa board.
This board was designed for a LoRa workshop, cheap and easy to assemble by hand (the microcontroller has a friendly package).
You can use it on a breadboard to test sensors, to build fast prototypes, for a LoRa workshop at a local maker space, etc...
It contains 3 main components:
- ATmega4808: the microcontroller, to use it with the Arduino IDE you need MegaCoreX: https://github.com/MCUdude/MegaCoreX and an UPDI programmer.
- RFM95W: a low cost LoRa module.
- TPL5010: it is a timer IC, its function is to wake up the microcontroller periodically. Thus, the microcontroller can sleep in its lowest power mode minimizing battery comsuption.

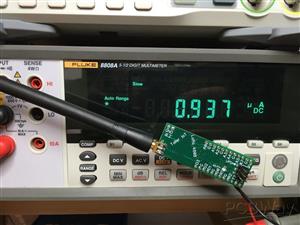

The board is powered by 2 AA (or AAA) batteries that can last several years.
Code
Example. How to connect a SHT21 temperature sensor to the Helium network.
https://github.com/Mullor/Blog/tree/main/Construyendo_dispositivo_lora_parte_3
Schematic and Layout
Schematic

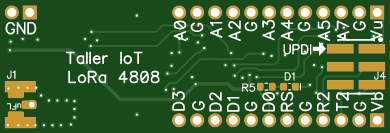

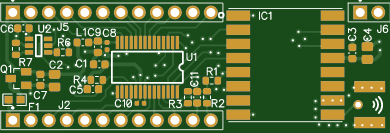

PCB
PCB stackup and layout: Signal-Power\GND\GND\Signal.
Nov 11,2023
720 views
end-flag
Arduino compatible LoRa board.
A low cost Arduino compatible LoRa board. It is designed to be used on a breadboard.
720
1
4
7.92 (3)
Published: Nov 11,2023
Download Gerber file 5
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2023/11/11 (GMT+8)
File update record
2023-11-1100:56:05
Gerber file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
