Description
Built the Edit IPAD I've always wanted
In this project, I built a custom iPad case designed for video editing on the go. The iPad Pro, with its M1 chip, proved faster for editing with DaVinci Resolve than my other devices. I tested SSD caddies, optimized the setup for Cfexpress Type B card readers, and refined the design to handle USB hubs and other peripherals. After several design iterations and 3D printing challenges, I finalized a functional and portable solution. Check out the video to see the full build process and how it all came together!
Video Link : https://youtu.be/Iy4a-rOpWpA
CAD-Custom parts and enclosures
Edit Ipad Case

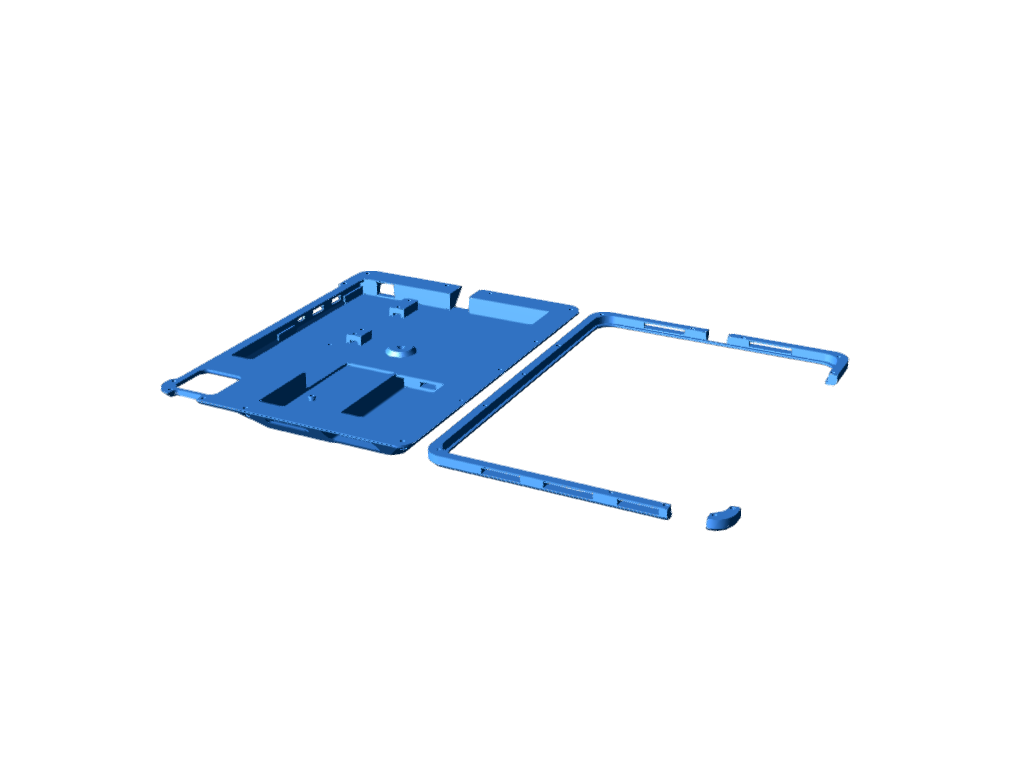

Edit Ipad Case.stl
Sep 09,2024
2,556 views
end-flag
Built the Edit IPAD I've always wanted

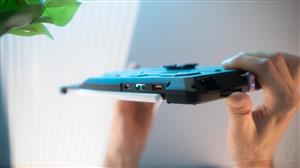

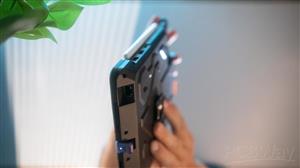

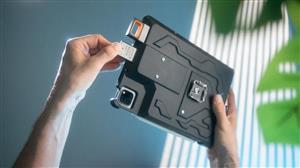

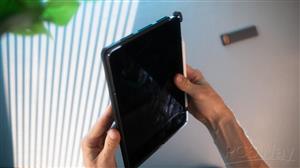

A case that provides the iPad Pro with HDMI, USB-A, CFexpress Type B, and an SSD caddy for easier handling during content creation.
2556
4
1
Published: Sep 09,2024
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial (CC BY-NC)
License.
