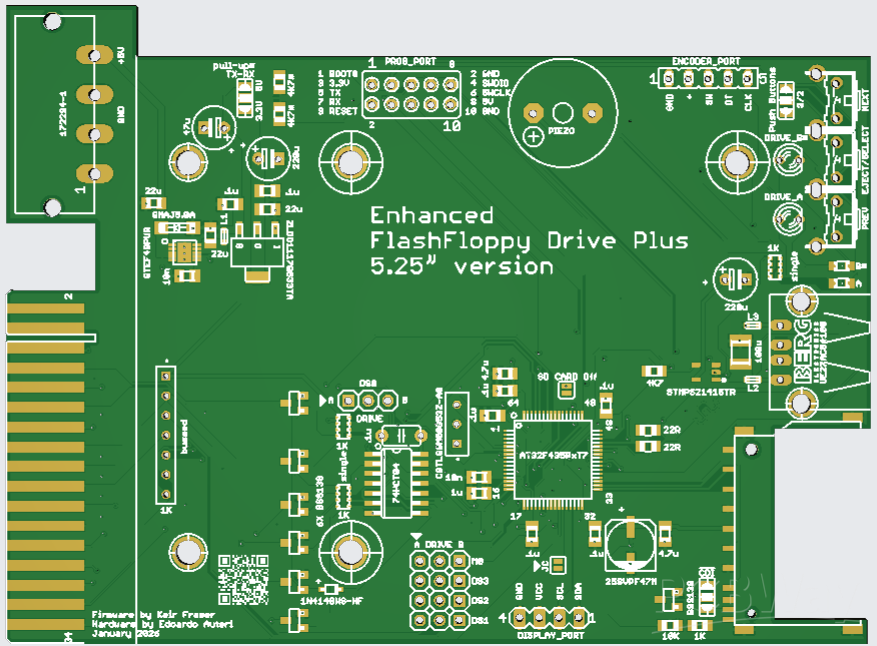

Enhanced Flash Floppy Drive Plus 5.25" edge connector (internal) gotek
Enhanced Flash Floppy Drive Plus
Improved Gotek for computers equipped with a 5.25" FDD
FEATURES
· Complete support of DD/HD images with AT32F435RGT7.
· Power-fail-safe and ESD/EMI-protected input, SD card (hot plug) and USB-A connectors.
· Optional MMC/SD slot.
· Prev/Next/Select-Eject-Insert long-shaft buttons.
· The motor signal and second drive are available.
· Improved silkscreen, programming port, minimized BOM list.
· Hardware mistakes from the original "Gotek" fixed.
· Supports a loud magnetic or capacitive piezo.
ACKNOWLEDGEMENT
· Flash Floppy is the firmware developed by Keir Fraser and available at https://github.com/keirf/flashfloppy .
· Keir Fraser has contributed to the design of the schematic.
DISCLAIMER
· Gerber and Centroid files, BOM list are subject to change without notice.
· The project is tested with the latest firmware (stable) version available at the time of writing.
