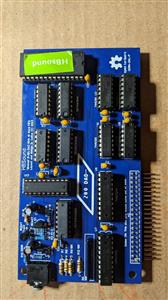

HBSound is an attempt to make Hobbyist home brew sound card, based off a simple architecture that can be controlled from even a simple micro controller.

The design goals are:

• Based off mostly available parts ( TLC7528 8 bit DAC / 74HCT40105)
• Requires only a hand full of minimal Motorola minimal controller signals to operate (E, R//W and A0)
• No DMA, Halting the CPU, wait operation or Interrupts required (but optionally available).
• HCT buffered control and data lines to allow for a broad rage of CPU's and controllers.

This is mostly accomplished using the widely available CD74HCT40105 (a CMOS clone of the CD40105 14 word 4 bit FIFO)

The design can be adopted for any home brew computer but the card I will be building is based around the HB6809 Home-brew expansion computer.

First some caveats:

Every time I do a custom PCB design, I get feedback which I am very grateful for but here's a few things to keep in mind:

Autodidact warning - I am self taught - this could be 100% wrong - but I did do testing on real hardware to determine its at least effectively working for my use-case.

This is not a high speed design - it does not adhere to high speed design practices, it is meant to work at the maximum E value found in my computer which is 1.8432 MHz. I should mention Howard W. Johnson / Martin Graham's book on high speed digital design (It is very good if you are in to that sort of thing)

This is a hobby, I do it for fun - I don't plan to mass produce or sell any of these things that I build and so the build quality is not always going to be what you would expect from a commercially provided, professionally designed product. Furthermore, I don't expect that I am the best source of information on the "right way to do something" -- you absolutely should take everything here with that grain of salt.
