Kube Multisensor - OLED & Ambimate MS4 Submodule Board
### DESCRIPTION

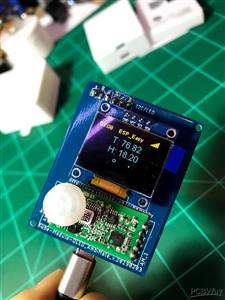

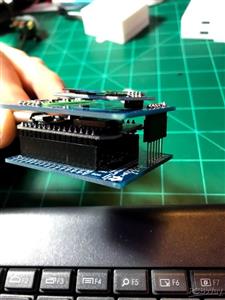

This is a "submodule" board for the Kube v2 multi sensor project (https://www.pcbway.com/project/shareproject/NodeMCU_v_1_2_Board.html). It is a cerrier board for the OLED screen, as well as the AmbiMate MS4 multisensor (temp/humidity/light/motion/audio/CO2/VOCs) OR the BME280/BMP280 sensors (temp/humidity/pressure).
### TECHNICAL DETAILS / COMPONENTS
BOM:
1 x This board
1 x AmbiMate MS4 sensor - can use Castellated or Through-Hole (Temp/Humidity/Motion/Lux - also available with CO2/VOCs/Audio Level) - https://www.arrow.com/en/products/2316851-1/te-connectivity
(Optional if MS4 sensor not used) 1 x BME280/BMP280 sensor - https://amzn.to/34IRcUr
1 x OLED - https://amzn.to/2E4kqTE
1 x 6-pin Male header - https://amzn.to/2GR4pT7
### LEARN / TOPIC / BUILD INSTRUCTIONS
Watch Livestream video below for prototype build instructions.
Kube Multisensor - OLED & Ambimate MS4 Submodule Board
