Tools, APP Software Used etc.
|
KiCad 8.0KiCad
|
Description
Lemontron Tool End Breakout Board

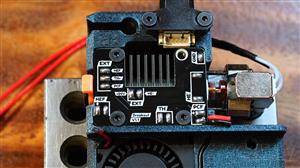

This simple little breakout board enhances the fun of assembling the Lemontron Tool Head. This board sits on the aluminum heat sink and provides pads to solder each component to. You can always build a Lemontron Tool Head without it, but manual wire management in such a small area can be frustrating.
Optimal thickness is 1mm, the thickness is definitely not critical.
Designed by Sample Name & Lemontron.
Nov 28,2024
1,496 views
end-flag
Lemontron Tool End Breakout Board

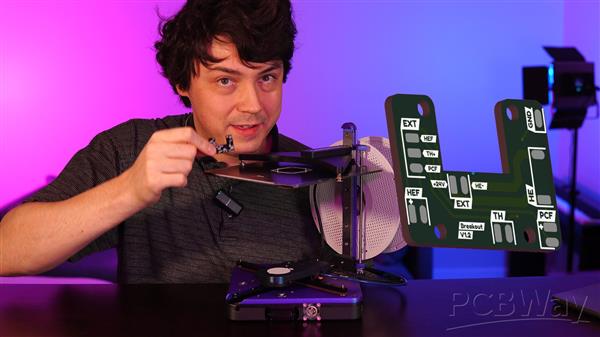

This is the tool end PCB from the Lemontron video.
1496
5
1
Published: Nov 28,2024
PCBWay Donate 10% cost To Author
File Last Updated: 2025/02/14 (GMT+8)
File update record
2025-02-1405:23:07
Gerber file is updated.
2024-12-2403:00:44
Gerber file is updated.
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial (CC BY-NC)
License.
