pohokanapoe MIV

INDONESIA • + Follow Edit Project

0

MSOP8 to DIP8 adapter 3D2.png

Description

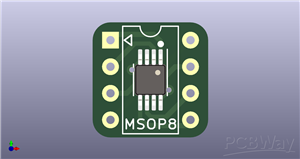

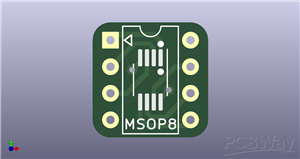

MSOP-8 to DIP-8 Adapter

MSOP-8 to DIP-8 Adapter

Board Size 11mm x 11mm

Attention : Don't populate MSOP-8 with thermal/exposed pad.

------------

MSOP-8 3x3mm Pitch0.65mm

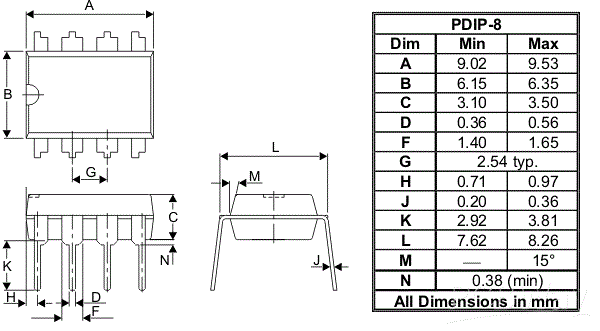

DIP-8

Download Gerbers

Nov 23,2023

546 views
