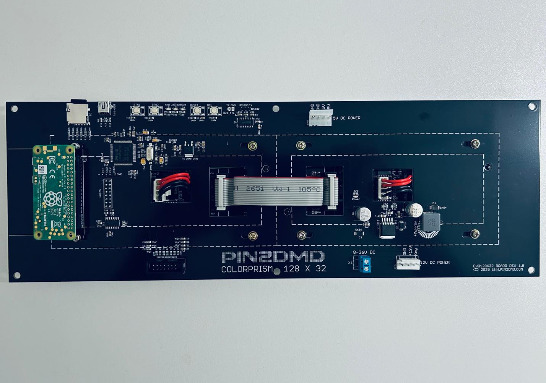

PIN2DMD EVO128x32 RGB LED Dotmatrix Pinball Display Controller
!!! This offer is a for PCB only . For fully assembled PCBs use the attached
BOM file and ask a pcbway representative for Turnkey Assembly Service !!!
With the PIN2DMD project you get a full color LED DMD controller for real and virtual pinball machines.
It currently supports:
- Visual Pinball / PinMame
- Future Pinball using DMD interceptor DLL from Macro
- Unit3d Pinball
- Ultra DMD support (Stephen)
- PinballX / XDMD support (Tom Speirs)
- Pinball fx2 support using dmdext from Freezy
- The Pinball Arcade support using dmdext from Freezy and NoEx
- Colorized Stern ROMs using SmartDMD inframe and serial sidechannel color switching
- Frame colorization of all pinball machines using PIN2DMD Editor (please don′t use copyrighted content )
- WPC real pinball input
- Stern SAM real pinball input
- Stern Whitestar real pinball input
- DataEast real pinball input
- WPC95 real pinball input
- Gottlieb real pinball input
- Stern Spike real pinball input
- Capcom real pinball input
- AlvinG real pinball input
- Spooky pinball real pinball input
- Data East 128×16 real pinball input
- WCID automated USB driver installation
- easy firmware upgrade through USB or microSD
More Info on pin2dmd.com
Code
https://github.com/lucky01/PIN2DMD
Schematic and Layout
http://www.pin2dmd.com
Aug 30,2018
16,466 views
end-flag
PIN2DMD EVO128x32 RGB LED Dotmatrix Pinball Display Controller
2 Layers PCB 127.5 x 380 mm FR-4, 1.6 mm, 1, HASL lead free, Black Solder Mask, White silkscreen
16466
36
16
10.00 (6)
Published: Aug 30,2018
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
File Last Updated: 2023/02/15 (GMT+8)
File update record
2023-02-1517:58:09
Centroid file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
