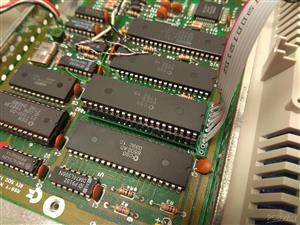

Parallel port mod for Commodore 1541-II disk drive
More about parallel port mod for disk drives: https://ist.uwaterloo.ca/~schepers/1541port.html
Once installed and connected to XUM1541/ZoomFloppy, setup CBMXfer to use nibtools:
Write complete floppy in ~25 seconds ? Why not :)
BOM:
- 1x PCB
- 2x20 pin straight goldpin 2,54mm
- 1x DIP40 socket
Jul 19,2019
6,195 views
Parallel port mod for Commodore 1541-II disk drive
2 Layers PCB 56 x 27 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
A breakout board for 1541-II that allows easy access to PA0-PA7 pins of 6522 chip. Those are used with nibbler feature of XUM1541/ZoomFloppy
6195
16
15
Published: Jul 19,2019
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
