Inaki Iturriaga
ARGENTINA • + Follow
Edit Project
Components
|
Raspberry Pi 4Raspberry Pi
|
x 1 | |
|
10 ohm resistorGeneric
|
x 6 | |
|
Mechanical SwitchesGeneric
|
x 6 | |
|
PinsGeneric
|
x 40 |
Tools, APP Software Used etc.
|
Soldering iron |
|
|
Soldering Iron Wire Welding Lead Roll |
Description
Raspberry Pi 4 mechanic switches shield.
Building the Shield:
Materials:
6x 10 Ohm Resistors.
6x Mechanical keyboard switches.
1x Raspberry Pi 4
40x Generic pins. (Skip this part if your board has pins)
Steps:
1- Solder the resistors to the resistor sockets located on the sides of the shield
2- Solder the Switches to the sockets
3- Program the board.

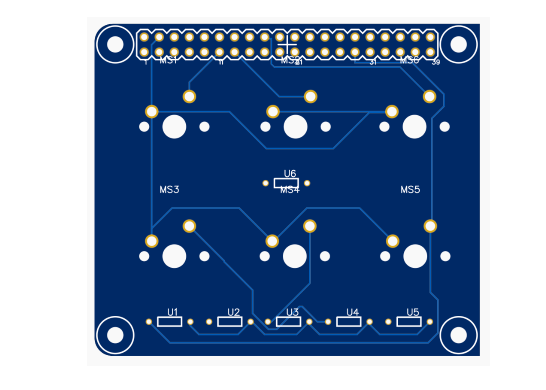

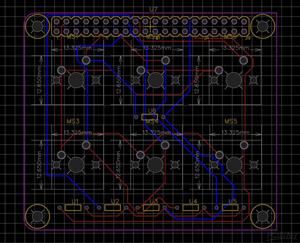

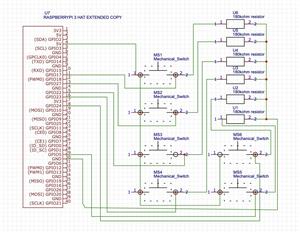

Schematic and Layout
Aug 08,2022
591 views
Raspberry Pi 4 mechanic switches shield.
Make a simple shield with buttons for hardware projects!
591
0
0
Published: Aug 08,2022
