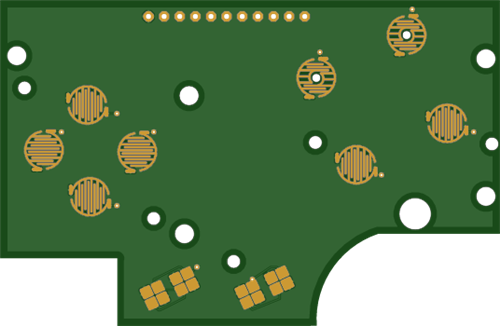

Replacement Game Boy Color PCB
I reverse engineered a GBC board from scans. For the schematic and more please visit my github
Link to no silk screen version
This is a reverse engineered board by me, Natalie the Nerd. Based on a CPU 04 but will work with all CPUs except E
IMPORTANT!!!
order at 1mm and ENIG
I made this to learn and fix some super corroded boards I have.
