Tools, APP Software Used etc.
|
DiptraceDiptrace
|
Description

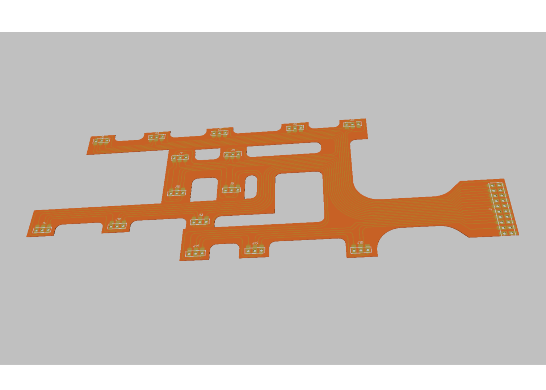

Tektronix 2465 2467 Front Panel flex PCB
This flex PCB is a direct replacement for the flex PCB used in the Tektronix 2465 and 2467 and related oscilloscopes.
If yours is broken or torn, this will provide a perfect fitting replacement part, with a few design changes for greater reliability (teardropped pads, curved traces, etc)
It should be ordered as an 0.26mm double sided flex PCB.
(There is no silkscreen in the gerber files, this is by design and correct).
https://youtu.be/NjHbfbtNhyY?t=1638
Sep 22,2022
734 views
end-flag
Tektronix 2465 2467 Front Panel flex PCB
A replacement flex PCB for the front panel on Tektronix 2465 and 2467 oscilloscopes
734
0
0
Published: Sep 22,2022
Download Gerber file 13
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial-ShareAlike (CC BY-NC-SA)
License.
