(DIY) COMMODORE 128 785260 DIAGNOSTIC CARTRIDGE

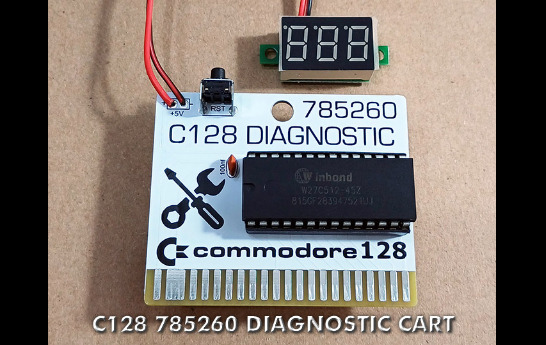

This is a 785260 Diagnostic Cartridge for Commodore C128, C128D, C128DCR.

Hello,

This is a tested and working circuit. This cartridge has been tested on C128DCR

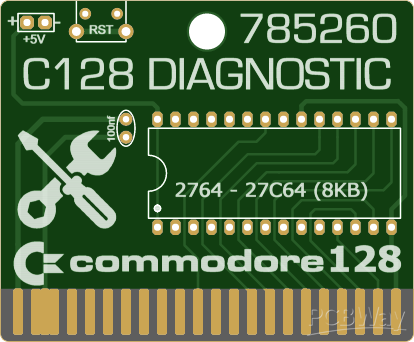

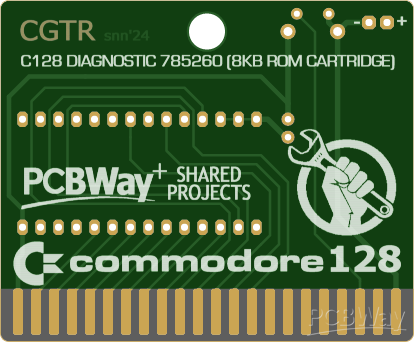

Commodore-128 785260 Diagnostic Cartridge is an easy DIY project, all components are through hole, marked on the PCB, easy to solder, easy to make ;)

This cartridge is designed to be plug-and-play, user-friendly, and does not require any hardware or jumper adjustments. Just insert the cartridge and turn on your Commodore 128.

You can download 785260 Diagnostic ROM files from the bottom of this page.

Many thanks to Jani.

https://blog.worldofjani.com/?p=164

Components List:

1pcs. 27c64 or 27c128 or 27c256 or 27c512 or w27c512 (DIP28) (needs to be programmed)

1pcs. DIP28 Wide IC Socket

1pcs. 100nf ceramic 2.54 pitch Capacitor

0.36'' 3 Digit LED two-wires DC Voltmeter (Optional, for monitoring 5V system voltage)

Right Angle Tactile Button (Optional, For RESET Button)

This PCB

You will need a programmer for EPROM

Please choose "Edge connector YES and Bevelling Yes (45°)

The 785260 Diagnostic Cartridge is not enough to test everything, I made some simple PCBs for you, to test the input / output ports. (Except the keyboard dongle, they are the same as the Commodore-64 586220 Diagnostic dongles.)

There are a total of six dongles (5 PCBs) in four projects.

Dongle for Control Ports

Dongle for Cassette Port

Dongle for User Port

Dongle for Commodore 128/128D Keyboard

You just need to make an extra serial port (disk drive port) dongle using DIN6 male connector and two cables without using PCB.

https://youtu.be/yttPzHCiOFk

In order to protect your electronical devices, always turn off your Commodore computer before connecting or disconnecting the cables or any other device.

Gerber files and component list are subject to change without notice. Before paying for the PCBs, be sure to update your orders!

As you can see I have uploaded many projects and I am still working on new projects. If you have any questions, please look for answers online. Unless I specify explicitly, all my projects are tested and confirmed to work under normal circumstances before being shared. I'm sorry I didn't have enough time to answer all the questions.

Use this PCB at your own risk !

Have fun

Thank you.
