Christmas present
The idea:
I made this small PCB perfect for decorating your Christmas tree, it is also a great gift for your loved ones.
Because without components?
I made it without components to make it accessible to everyone and more easily. So once it is produced you do not need to do anything else because it is already ready to be wrapped.
How I made it:
I created this shape entirely inside Kicad using the grid snap to keep the correct dimensions and consistent lines between them.
In this project the hard part was creating a mask for the front bow, because otherwise it was removed from the Front Mask. So with a little patience I created a rule area that removed the F.Mask from above the bow.

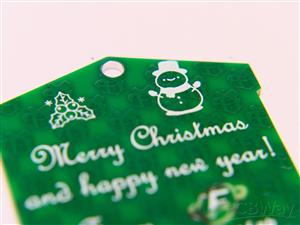

On the back to create the effect of the gift packages, I used the integrated tool of Kicad to convert an image into a footprint that I then multiplied and positioned with this pattern.
Small tutorial for how to make the image pattern on KiCad: https://youtube.com/shorts/sYPQXdcuHL4?si=bLjuBqxzR7YhhNk6

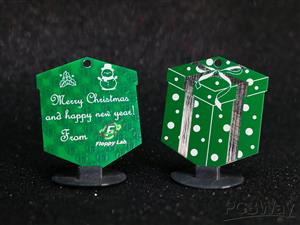

(The actual photos are slightly different from the published design)
